Acoustic Testing Pro Manual Ultrasonic Portable Hardness Tester

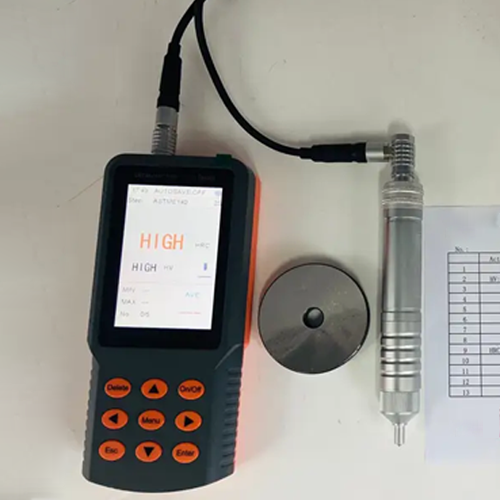

Acoustic Testing Pro manual ultrasonic portable hardness tester is composed of host, probe, and probe connection cable.
Overview

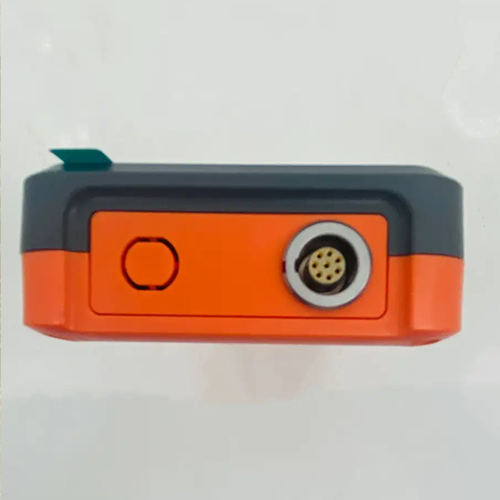

Acoustic Testing Pro manual ultrasonic portable hardness tester is composed of host, probe, and probe connection cable. The probe is connected to the host with an eight-core connection cable for signal transmission. The host adopts a color display with rich display content.
Features
- High test speed output test results in 1 s at the soonest
- 50 sets of data storage
- Easy to test on assembly line
- Little damage to the workpiece
- Endurance: 10 hrs
Technical Specifications
| Convertible hardness scale | HRC, HRA, HRB, HBW |
| Main hardness scale | HV |
| Measuring Range | HV 50 to 1599, HRC 20 to 68, HB 85 to 650 |
| Battery | 3.6 V, 3000 mAh lithium battery |
| Measuring Direction | Support 360° |
| Simple calibration | 5 sets of one-block calibration data |
| Customized support | OEM |
| Hardness Indication | LCD display |
| Accuracy | ±4% HB, ±1.5 HR, HV please refer to the table below |
| Net Weight | Approximate 1.10 lb (500 g) (Without probe) |
