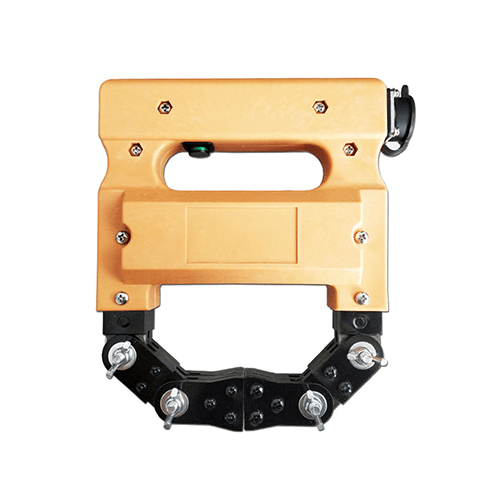

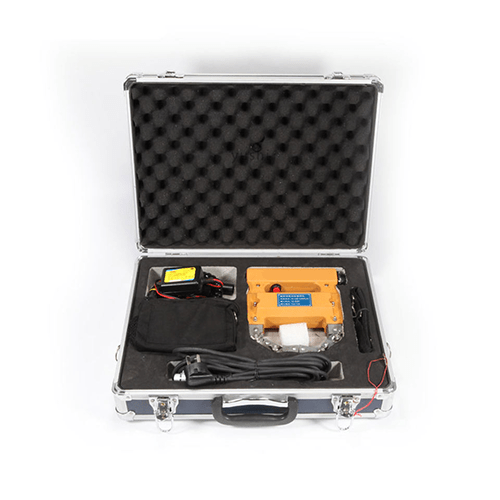

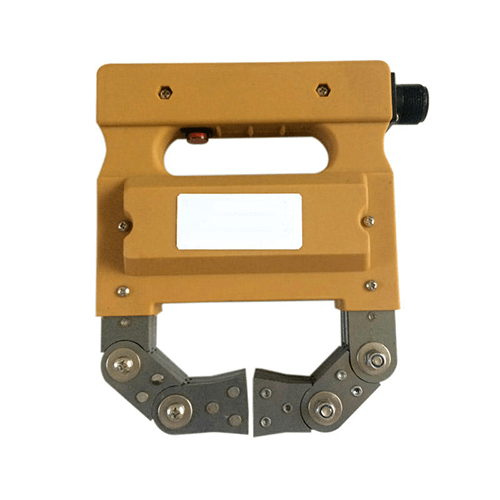

Acoustic Testing Pro Magnetic Crack Detector
Acoustic Testing Pro magnetic crack detector is a small portable non destructive testing instrument with clear crack display, reliable performance, stable and easy operation.
Overview

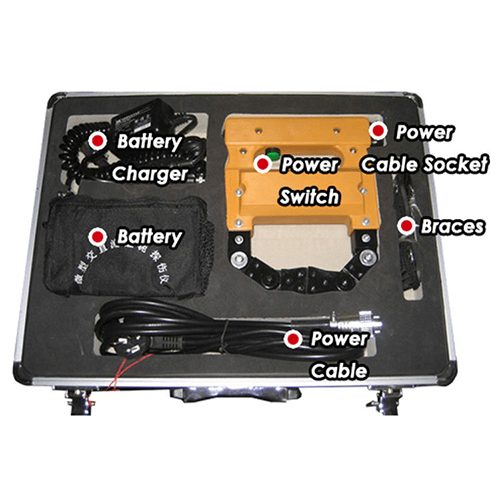

The instrument uses a coil to be wound directly on the probe to generate an induced magnetic field to magnetize the work piece. The device has small size, light weight, large lifting force and adjustable movable joints. Suitable for flaw detection of flat welds, fillet welds, steel pipes, pressure vessels, pipes, shafts and complex shapes.
Technical Specifications:
| Power Supply | AC 220 V 50 Hz, DC 12 V |
| Charging Power | AC 220 V, 50 Hz |
| Battery | MF 12 H to 7.2 H |
| Working Current | AC 1.4 A; DC 1.7 A |
| Battery Life | More than 6 hrs |
| Working Method | 2 min. ON, 2 min. OFF |
| Pole Distance | 8.10 in to 2.01 in (50 mm to 200 mm) |
| Dimensions Yoke | 8.19 in × 2.05 in × 5.75 in (208 mm × 52 mm × 146 mm) |
| Dimensions Battery | 6.30 in × 3.94 in × 2.76 in (160 mm × 100 mm × 70 mm) |
| Dimensions Charger | 3.15 in × 2.36 in × 1.57 in (80 mm × 60 mm × 40 mm) |
| Lifting Power Ac | > 12.13 lb (5.5 kg) |
| Lifting Power Dc | > 55.12 lb (25 kg) |
| Weight Yoke | 7.05 lb (3.2 kg) |
| Weight Battery | 6.39 lb (2.9 kg) |
