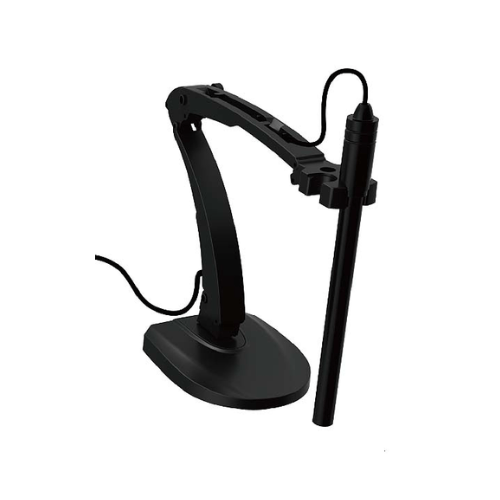

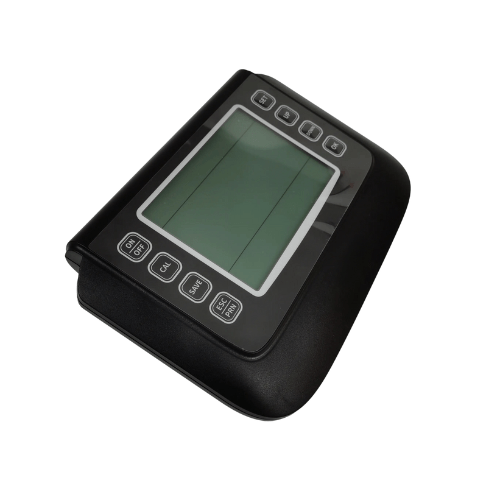

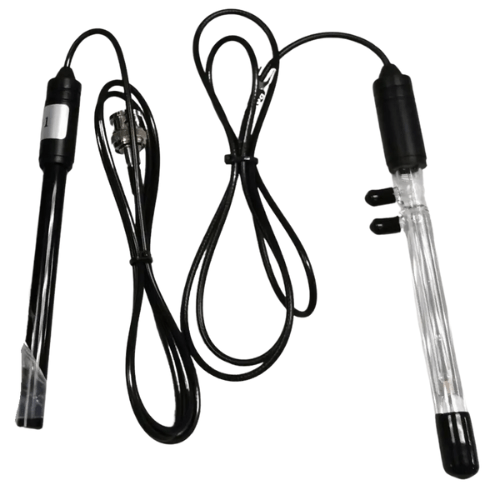

Acoustic Testing Pro LCD Water Sodium Ion Meter
This LCD Water Sodium Ion Meter has 6.5-in LCD display, ±0.02 pH/pX accuracy, resolution of 0.01 pH / pX, and examination range of 10 or 10-6 mol/L.
Features
- 6.5 inch LCD screen which is intuitive and can show more parameters. Humanized design of operating interface makes operations simpler.
- Omron long lasting and light touch panel can be used more than 100,000 times.
- Auto calibration, auto temperature compensation, data storage, USB data export, clock, wireless printing, function setup, smart self diagnosis and other intelligent functions.
- Built-in big memory can store 150 sets of test data which can be saved and transferred to USB flash drive and opened with Excel, very easy and convenient for edit.
- Auto recognition of eight kinds of standard conductivity solution and there are two series of standard solution for option: USA series and China series.
- Adopt advanced conductivity measurement technology, one point calibration of conductivity electrode can meet the measuring accuracy requirements for test 5.
- Able to switch between conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
- Optional Bluetooth block and support wireless Bluetooth printing to make operations much easier for users. Optional data transmission to cell phone via wireless Bluetooth.
- IP54 dustproof and waterproof housing.
Technical Specification
| MODEL | ACTPSIM-211L | ACTPSIM-211H | ACTPSIM-211P |
| Display | 6.5 inch LCD screen | ||
| Parameters | conductivity, resistivity, TDS, salinity, temperature | ||
| Measuring range | (0.00~20.00) μS/cm
(20.0~200.0) μS/cm (200~2000) μS/cm (2.00~20.00) mS/cm (20.0~200.0) mS/cm (200~2000) mS/cm (K=10) |
||
| Conductivity resolution | 0.01/0.1/1 μS/cm
0.01/0.1/1 mS/cm |
||
| Conductivity Accuracy | Electrode: ±1.0%FS
Instrument: ±1.50%FS |
Electrode: ±0.5%FS
Instrument: ±0.8%FS |
|
| Resistivity measuring range | 0 ~ 100 MΩ·cm | ||
| TDS | 0 ~ 100g/L | ||
| Salinity | 0 ~ 100 ppt | ||
| Temp measuring range | (0 ~ 100) °C | ||
| Temp resolution | 0.1 °C | ||
| Temp accuracy | ±0.5 °C | ||
| Data storage | 150 sets | ||
| Communication interfaces | USB, Bluetooth | ||
| Working conditions | Temperature: 5 ~ 40° Humidity: 5 ~ 85% | ||
| Power | 12V/1A | ||
| Size & Weight | 240 × 170 × 70mm/600g | ||
