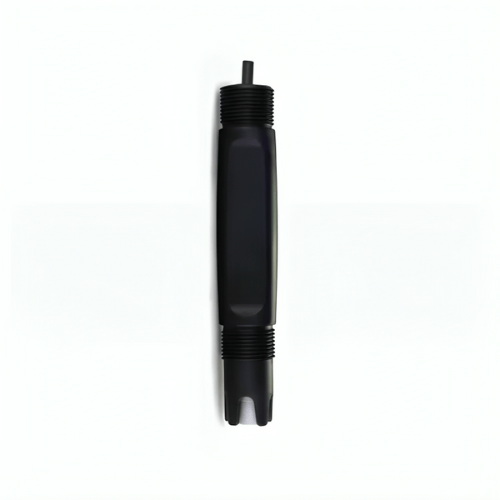

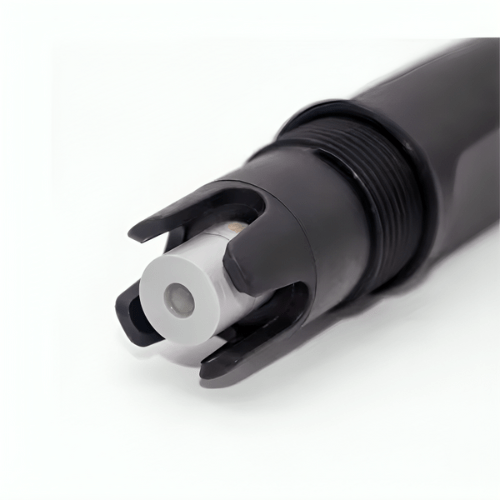

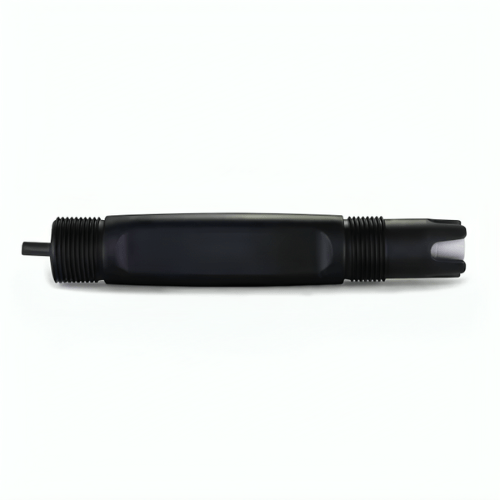

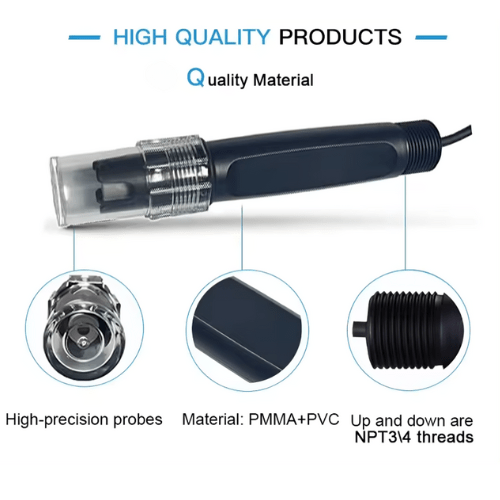

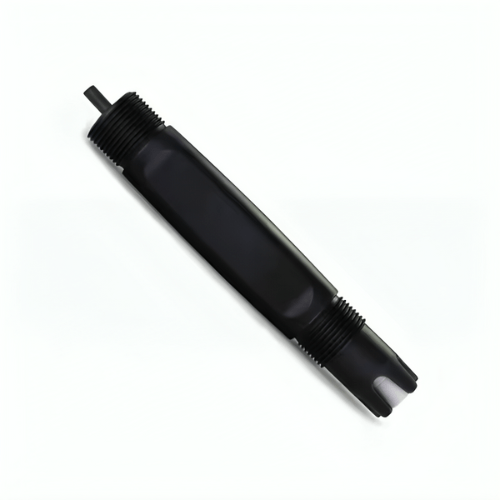

Acoustic Testing Pro Ion Selective Electrode
This ion selective electrode has a Measurement range of 0 mg per L to 1000 mg per L, Resolution of 0.1 mg per L and IP 68 of waterproof.
Features
- RS-485-NH Ammonium Ion sensor is solid membrane ion selective electrodes, used to test ammonium ions in water, which can be fast, simple, accurate and economical.
- The design adopts the principle of single-chip solid ion selective electrode, with high measurement accuracy.
- PTEE large-scale seepage interface, not easy to block, anti-pollution Suitable for wastewater treatment in the semiconductor industry, photovoltaics, metallurgy, etc. and pollution source discharge monitoring.
- High-quality imported single chip, accurate zero-point potential.
Technical Specifications
| Power or Outlet | 9 VDC to 36 VDC or RS 485 MODBUS |
| Measuring Method | Ion electrode method |
| Housing Material | PP |
| Application | General application, river, lake, drinking water environmental protection, etc. |
| Waterproof Rating | IP 68 |
| Measurement Range | 0 mg per L to 1000 mg per L Customizable |
| Resolution | 0.1 mg per L |
| Accuracy | ± 2.5 % |
| Pressure Range | ≤ 0.3Mpa |
| Temperature Compensation | NTC10K |
| Calibration | Sample calibration, standard liquid calibration |
| Connection Methods | 4 core cable |
| Cable Length | Standard 10m cable or extend to 100m |
| Mounting Thread | NPT3 or 4’’ |
| Temperature Range | 32 ºF to 122 ºF (0 ℃ to 50 ℃) |
| Size | 1.18 in x 6.29 in (30 mm x 160 mm) |
