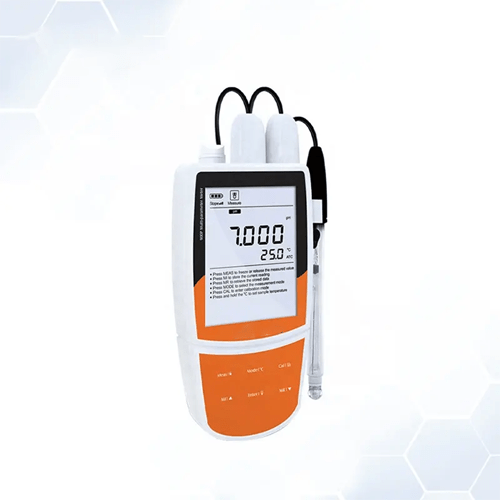

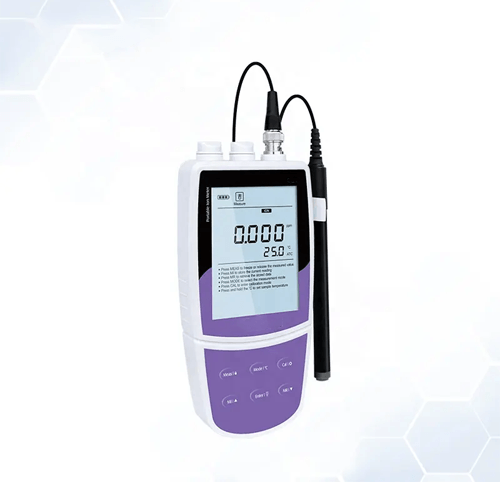

Acoustic Testing Pro Ion Meter
This ion meter has a temperature range of 32 °F to 212 °F, accuracy of ±0.2 mV, and output USB communication interface.
Technical Specifications
| Accuracy | ±0.5% F. S |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 points to 5 points (0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000) |
| Measurement Units | ppm, mg/L, mol/L, mmol/L |
| mV Range | -1999.9 mV ± 1999.9 mV |
| Accuracy | ±0.2 mV |
| Resolution | 0.1 mV |
| Temperature Range | 32 °F to 221 °F (0 °C to 105 °C) |
| Accuracy | 32.9 °F (±0.5 °C) |
| Resolution | 0.1 °F (0.1 °C) |
| Calibration Points | 1 point |
| Calibration Range | Measured value 50 °F (±10 °C) |
| Temperature Compensation | 32 °F to 212 °F (0 °C to 100 °C), Manual or Automatic |
| Data Hold | Manual or Auto-Endpoint |
| Stability Criteria | Low or High |
| Calibration Due Alarm | 1 days to 31 days or off |
| Power Off | Manual or Automatic (10 minutes, 20 minutes, 30 minutes) |
| Reset Function | Yes |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | BNC |
| Display | LCD |
| Power | 3 × 1.5 V AA batteries or DC 5 V power adapter |
| Battery Life | Approximately 150 hours (Turn off the backlit) |
| Dimensions | 6.6 in x 3.3 in x 1.1 in (170 mm × 85 mm × 30 mm) |
| Weight | 0.6 lb (300 g) |
