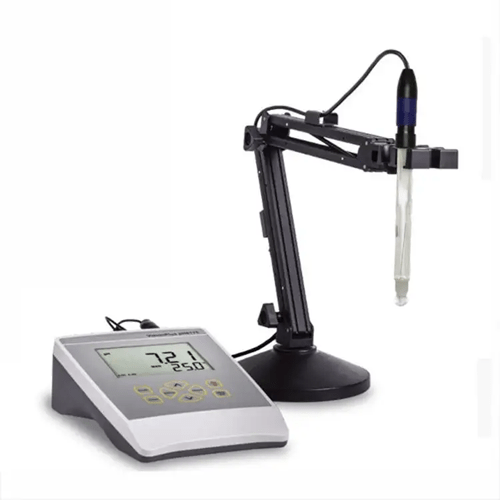

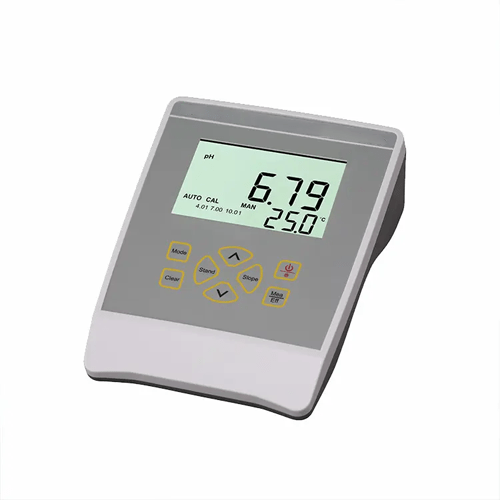

Acoustic Testing Pro Ion Meter
This ion meter has a temperature range of 32 °F to 212 °F, pH range of 0.00 pH to 14.00 pH and 115 V/ 230 V AC power adapter.
Features
- Automatic or manual temperature compensation (pH)
- Automatic buffer recognition of US and NIST buffer sets (pH)
- Dedicated pushbuttons for key operations
- >1012 Ω input impedance (pH)
- 2 Points calibration (pH)
- 2-Wire conductivity (conductivity, salinity, TDS)
- 1 Point per range calibration (conductivity, salinity, TDS)
- K = 0.1, 1.0 and 10.0 (conductivity, salinity, TDS)
Technical Specifications
| Range | pHmVTemperature | 0.00 pH to 14.00 pH1999.9 mV to 1999.9 mV32 °F to 212 °F (0.0 ℃ to 100.0 ℃) |
| Resolution | pHmVTemperature | 0.01 pH0.1 mV32.18 °F (0.1 ℃) |
| Accuracy | pHmVTemperature | ±0.01 pH±0.4 mV (-1500.0 to 1500.0); ± 1 mV ( -1999.9 to -1500.0 and 1500.0 to 1999.9)32.36 °F (±0.2 ℃) |
| pH Buffer Recognition | US (pH 4.01, pH 7.00, pH 10.01) or NIST (pH 4.00, pH 6.86, pH 9.18), user selectable. | |
| Buffer Temp range | 32 °F to 140 °F (0.0 ℃ to 60.0 ℃) | |
| pH Calibration | 1-, 2- or 3-point calibration. | |
| pH Electrode Offset Recognition | ±1.50 pH | |
| pH Electrode Slope Recognition | ±30% at pH 4.00, pH 4.01, pH 9.18 or pH 10.01. | |
| pH Temp Compensation | Auto / manual 32 °F to 212 °F (0.0 ℃ to 100.0 ℃). | |
| Input Impedance | >1013 ohms. | |
| Power | 6 X 1.5 V AAA batteries or 115 V/ 230 V AC adapter. | |
| Operating Ambient Conditions | From 32 °F to 122 °F (0 ℃ to 50 ℃), at 90% RH. | |
| Case | IP 54 waterproof | |
| Dimensions | 5.9 in x 7.9 in x 2.8 in (150 mm x 203 mm x 72 mm) | |
| Weight | 1.1 lb (504 g) | |
