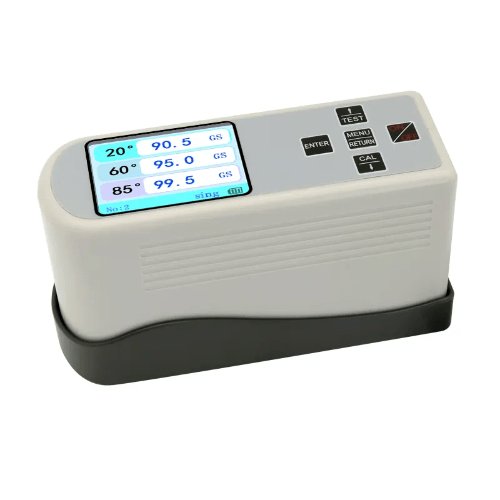

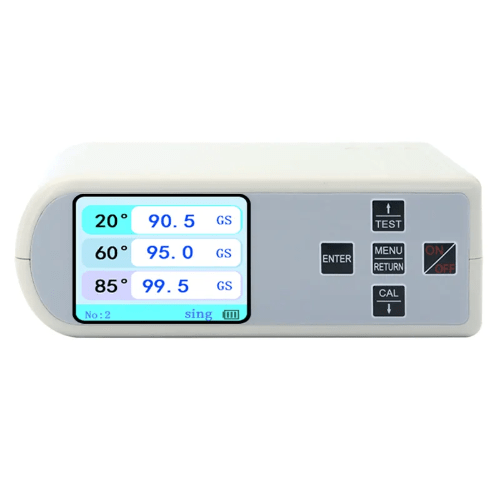

Acoustic Testing Pro Intelligent Multi-Angle Gloss Meter
Acoustic Testing Pro Intelligent Gloss Meter, metering device, is in accordance with international standards of ISO2813, DIN67530 and ASTMD523.
Overview
Acoustic Testing Pro Intelligent Gloss Meter, metering device, is in accordance with international standards of ISO2813, DIN67530 and ASTMD523 international standards, national standards GB9754, GB9966, GB/T13891 design and production, the technology reached JJG696-2002 “specular gloss and gloss plates” identification for a work machine requirement.
Features
- Small size, lightweight and comfortable touch
- Fast measurement; only takes 0.5s, automatic shutdown
- Embedded standard box design for dust and dirt prevention
- Charging using USB
- Real-time data storage and retrieval
Technical Specifications
| Projection Angle | 20 ° 60 ° 85 ° |
| Measuring Range (20 °, 60 °, 85 °) | 0 Gs or Gu to 2000 Gs or Gu 0 Gs or Gu to 1000 Gs or Gu 0 Gs or Gu to 160 Gs or Gu |
| Resolution | 0.1 Gs or 1 Gs |
| Error Value | ± (0.3 +1%) |
| The Stable Value | ± (0.2 +0.2%) |
| Battery Capacity Battery Voltage | 3.7 V (3000 mAh lithium battery) |
| Window Size | 2.47 in × 0.51 in (62.8 mm x 13 mm) |
| Data Storage | Can store 10 sets of 2000 data in total |
| Humidity | Less than 85 %, no condensation |
| Net Weight | 0.799 lbs (363 g) |
| Host Size | 5.67 in × 2.17 in × 2.99 in (144 mm x 55 mm x 76 mm) |
| Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
