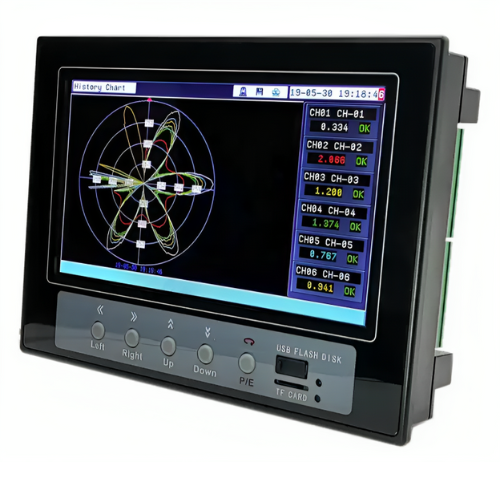

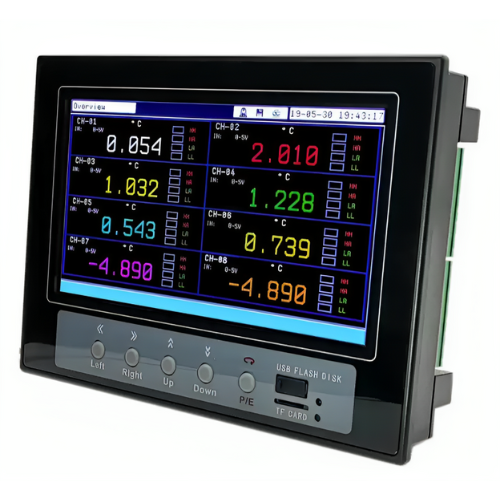

Acoustic Testing Pro Industrial Temperature Humidity Data Logger
Acoustic Testing Pro industrial temperature humidity data logger as various parameters memory and recording, user-friendly, to achieve ur all kinds of application.
Overview
Acoustic Testing Pro industrial temperature humidity data logger as various parameters memory and recording, user-friendly, to achieve ur all kinds of application. Support USB pen driver and TF card data transferring, also standard RS 485 or Ethernet Modbus communication, printing by software or mini printer.
Features
- Pressure Transmitter
- Flow meter
- Temperature Transmitter
- T&H Transmitter
- PH Vibration
- Level Transmitter
Technical Specifications
| Univeral Input | RS 485 modbus standard protocol input |
| Input Channels | 8,16,24,32, optional |
| Relay output | 3A, NO, max 8 relay output, configurable for channels |
| RS 485 communication | standard Modbus-rtu protocol, |
| Ethernet Communication | standard Etherent MODBUS-TCP or IP protocol |
| feed output | auxiliary 24 V DC output for transmitter |
| printing output for data in digital and curve | |
| Flow totalizer | with temperature, pressure compensation for channels |
| Math | +, -, x, /, max, min, average, linear math |
| Accuracy | ± (0.2% FS +1) digital |
| Display | 7 in (177.8 mm) Color LCD TFT |
| Power supply | 100 V to 240 V |
| Memory Capacity | Memory capacity can be set flexibly according to the memory interval time setting. Huge capacity for Long time data saving up to 10 years with power -off protection |
| Memory Interval time | 1 sec, 2 sec…….3600 sec, can be set flexibly as required in recorder |
| Screen Display | Various screen display in digital, trend, barograph, circular chat display |
| Size or Installation Size | 7.58 in x 5.70 in x 6.31 in (190 mm x 145 mm x 160.5 mm) or 187.5 m × 137.5 m |
