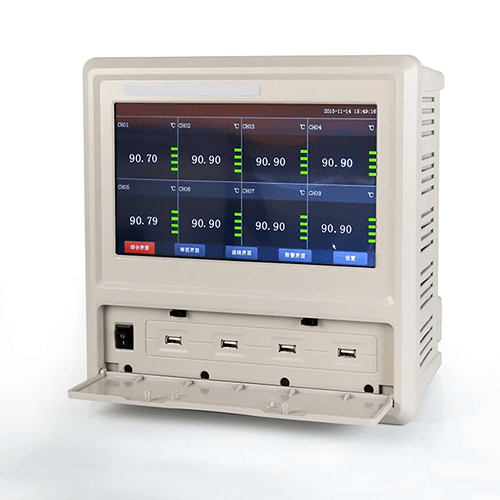

Acoustic Testing Pro Industrial Temperature Data Logger
This industrial temperature data logger has storage humidity of < 95% RH, LCD high brightness of 10.2 in and weight of 8.37 lb.
Features
- 10.2 in (1024 X 600) TFT LCD high-brightness, clear picture, wide viewing angles
- Powerful image display and data processing function
- Hidden embedded portable shape brings more convenience
- Support USB interface and large capacity. Effective support long-term information collection
- Powerful PC analysis software
- Data acquisition, monitoring, recording and controlling
Technical Specifications
| AC or DC Power | 85 VAV to 265 VA or 24 VDC ± 10 % |
| Power Waste | ≤25 VA |
| Thermocouple | K, E, R, B, N, T, E, J, S, WRE5-26, WRE3-25 |
| Hot resistance | Pt 100, Cu 50 |
| Current | 4 mA to 20 mA,0 mA to 10 mA,0 mA to 20 mA |
| Voltage | 0 V to 5 V,0 V to 10 V,1 V to 5 V |
| Measurement accuracy | ≤ ± 0.2 % F.S |
| Relay | TP1718 |
| Operating temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Operating humidity | < 85 % R.H |
| Storage temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) |
| Storage humidity | < 95% R.H |
| Dimensions | 11.33 in (288 mm) x 11.33 in (288 mm) x 7.87 in (200 mm) |
| Weight | 8.37 lb (3.8 KG) |
