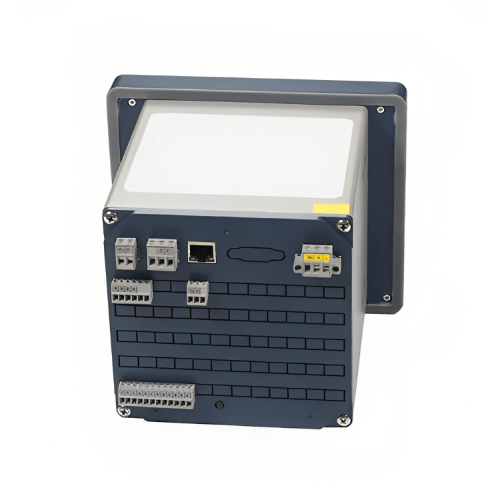

Acoustic Testing Pro Industrial Temperature Data Logger

Name: Acoustic Testing Pro Industrial Temperature Data Logger - Acoustic Testing Pro
SKU: ACTPITDL-105

This Industrial Temperature Data Logger has Voltage of 0 V to 5 V, Current of 0 mA to 20 mA, power consumption of 20 VA and resistance of ≥250 KΩ.

SKU: ACTPITDL-105 Category: Temperature Loggers

Features

Display	LED display
Voltage	0 V to 5 V
Current	0 mA to 20 mA
Thermal resistance	Pt 100, Cu 50, Cu 53, Cu 100, BA 1, BA 2
Thermocouple	B, S, K, E, T, J, R, N, F2, Wre 3-25, Wre 5-26 Frequency PI
resistance	≤380 Ω, 0 mA to 10 mA
resistance	≥250 KΩ, 0 V to 5 V
Feed output	DC 24 V ±1
Measurement accuracy	0.2% FS ± 1 d
Working power supply AC	85 V to 264 V
Working power supply DC	12 V to 36 V
Power consumption	20 VA
Size	160 x80 x 125 or 80 x 160 x 125
