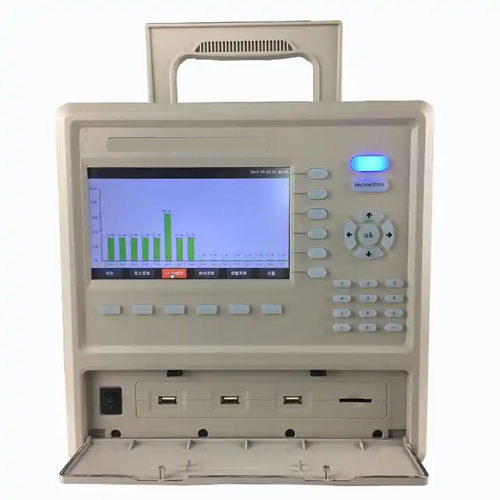

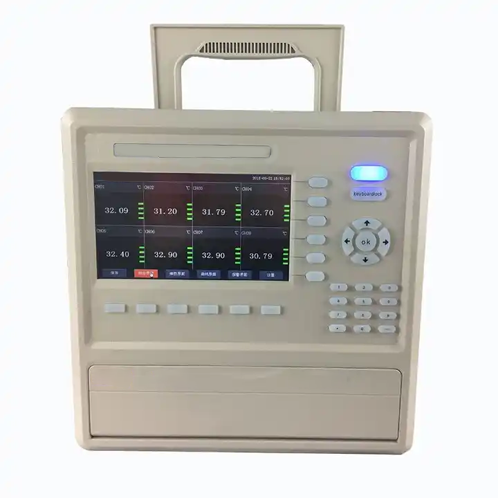

Acoustic Testing Pro Industrial Temperature Data Logger

This Industrial Temperature Data Logger has voltage of 0 V to 5 V, current of 4 mA to 20 mA, LCD high of 10.2 inch and power waste of ≤25 VA.

SKU: ACTPITDL-112 Category: Temperature Loggers

Description

Features

• 10.2 in (1024 X 600) TFT LCD high brightness, clear picture, wide viewing angles
• Powerful image display and data processing function
• Hidden embedded portable shape brings more convenience
• Support USB interface and large capacity
• Effective support long-term information collection
• Powerful PC analysis software
• Data acquisition, monitoring, recording and controlling

Technical Specifications

AC or DC Power	85 VAV to 265 VA or 24 VDC ± 10 %
Power Waste	≤25 VA
Hot resistance	Pt 100, Cu 50
Current	4 mA to 20 mA
Voltage	0 V to 5 V
Accuracy	≤±0.2% F.S
Temperature	32 °F to 122 °F (0 ℃ to 50 ℃)
Humidity	<85% RH
Dimensions	11.33 in x 11.33 in x 7.87 in (288 mm x 288 mm x 200 mm)
Weight	8.37 lb (3.8 kg)
