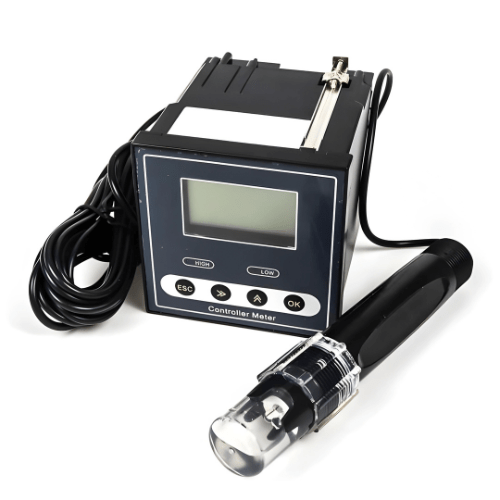

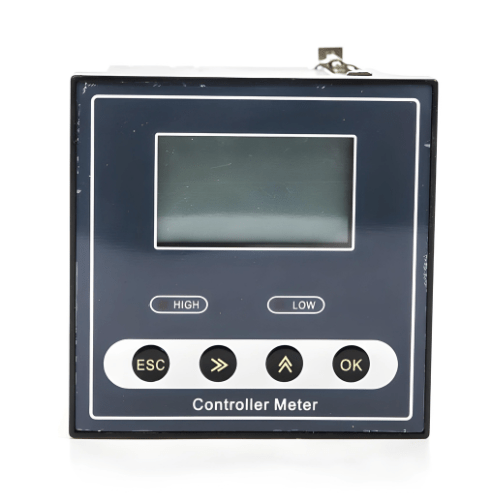

Acoustic Testing Pro Industrial PH Meter
Acoustic Testing Pro Industrial pH Meter is an intelligent upgrade product of industrial acidity meter, which can continuously measure and control the pH value of sewage.
Technical Specifications
| Measuring Range | PH 0 pH to 14 pH, ORP -1900 mV to +1900 mV |
| Accuracy | ± 0.02 PH; ± 1 mV |
| Resolution | 0.01 PH; 1 mV |
| Stability | ≤ 0.02 PH per 24 hours; ≤ 3 mV per 24 hours |
| PH Standard Solution | 4.00 or 6.86 or 9.18 |
| Display Mode | 128 X 64 Dot matrix LCD |
| Signal Output | 4 mA to 20 mA Isolation protection output, Maximum loop resistance 300 Ω |
| Alarm Output | One set of high and low limit alarm contacts 3 A or 250 V AC, normally open contact relay |
| Power Supply | AC 220 V ± 10 % 50 Hz |
| Power Consumption | < 3 W |
| Humidity | ≤ 85 % RH |
| Environmental Conditions | (1) Temperature 32.0 °F to 140.0 °F (0 °C to 60 °C) |
| Dimensions | 3.78 in x 3.78 in x 4.33 in (96 mm × 96 mm × 110 mm) |
| Opening Size | 3.62 in x 3.62 in (92 mm × 92mm) |
