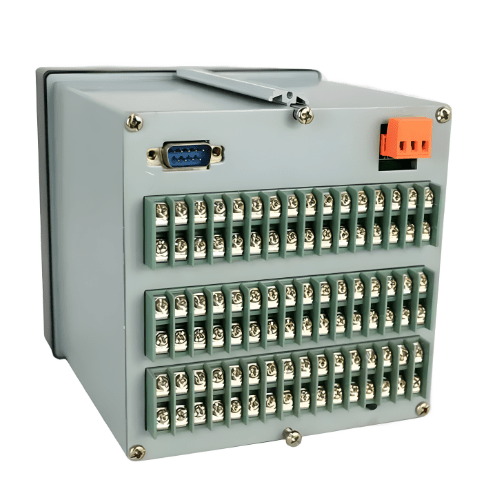

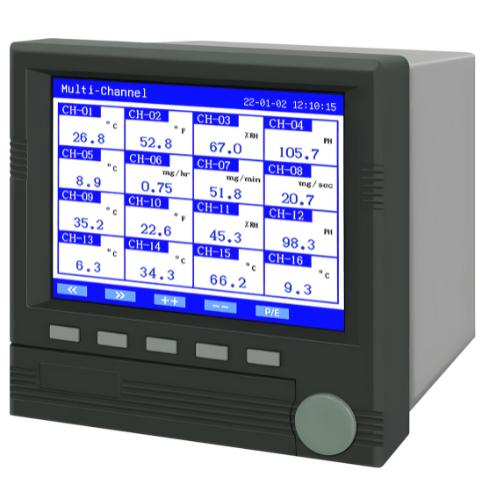

Name: Acoustic Testing Pro Industrial Monochrome USB Temperature Data Logger - Acoustic Testing Pro
SKU: ACTPITDL-203

Technical Specifications

Input channels	Up to 16 channels
Power supply	100 V AC to 240 V AC or 100 V DC to 240 V DC
Accuracy	± (0.2 % FS+1) digit
Various display	Digit, bar graph, curve and chart
Communication	Standard mod bus RTU communication protocol
Linear current	0 mA to 20 mA
Input signals	K, S, E, J, T, B, N, R, WRe526 and WRe523
RTD	PT100, CU50, CU100
Input channel number	Maximum 16 Channels Input, each channel can be configurable flexibly and universal input
Output	16 relay output,6 re transmission output, RS485 communication and RS232 printing port
Data Memory	Big capacity FLASH memory, up to 10 years for long time memory even power off
Data Save	8 MB memory capacity with big capacity TF card expedition
Data Transfer	It transferred by USB pen drive, data trend display printing, data checking and export to excel formal for further analysis
Communication	RS 485 communication, Ethernet communication port, TCP or IP protocol and universal standard MOD BUS-RUT protocol can be configurable with HMI. DCS, MCGS
Flow totalize	Flow totalize function, can be with 5 optional temperature and pressure compensation
True Color Display	5.6 in TFT LCD screen display, wide view, high brightness and high resolution
Easy Operation	With 5 keys for screen display, parameters setting all operation and easy user-friendly
Frequency	47 Hz to 63 Hz
Power consumption	5 V AC
Dimension	5.66 in × 5.66 in × 7.08 in (144 mm × 144 mm × 180 mm)
