Name: Acoustic Testing Pro Industrial 32 Way Temperature Data Logger - Acoustic Testing Pro
SKU: ACTPITDL-407

Technical Specifications

Test Channels	8, 16, 24, 32
Data Sheet	Realize multi channel simultaneous display and observation test
Alarm Function	Can set the upper limit, upper limit, lower limit, lower and lower limit alarm, while supporting the recording function
Temperature Unit	K, ℉, ℃
Test performance	32 bit ARM microprocessor, picture response time <0.55

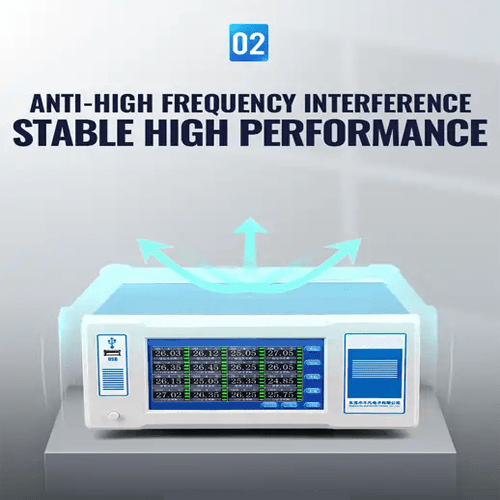

Anti high frequency interference	Each channel is isolated from each other, anti-high frequency interference, the peak isolation voltage can reach 2500 V
Storage capacity	8 G large capacity FLASH data
Data protection	Data is not lost when power off, can store data from 72 hrs to 180 days
U disk function	Support external U disk export storage data
Display range	-999.9 to 1999.9
Temperature Compensation	Each channel supports temperature compensation and provides multiple compensation modes
Annotations Mark	Each temperature value can be named arbitrarily
Real Time Clock	Using hardware real time clock, clock error ± 1 min/year
Sampling period	1 sec, i.e. sample every channel every 1 sec
Communication Interface	RS 232 C serial communication interface with optocoupler isolation
Power configuration	Can work normally in the wide voltage range of AC power supply AC 85 V to 265 V

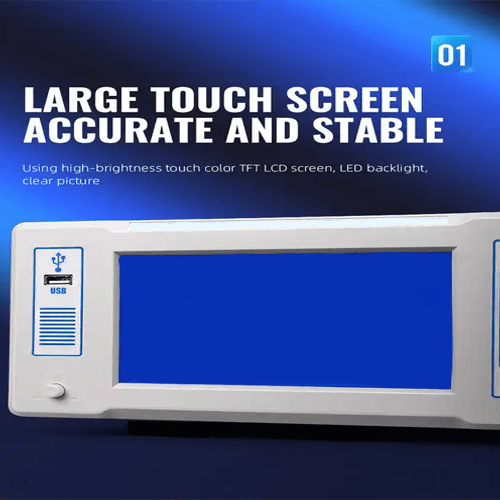

Screen Size	5 in (127 mm)
Accuracy	±0.1%, +32.9 ℉ (0.5 ℃)

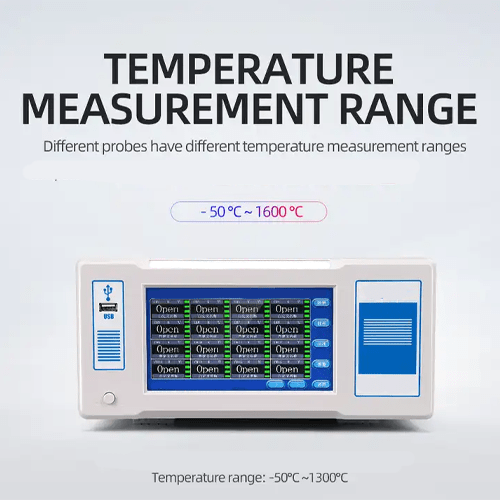

K Probe	-58 ℉ to 2372 ℉ (-50 ℃ to 1300 ℃)
