Acoustic Testing Pro IEC Water Test Device

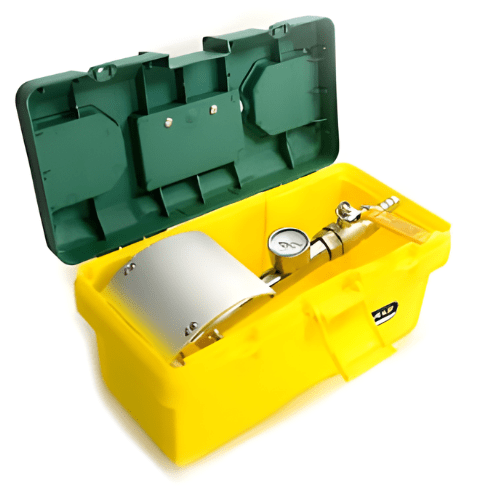

Acoustic Testing Pro IEC water test device IPX 3 or 4 is a hand-held test device to verify protection against spraying and splashing water.
Overview

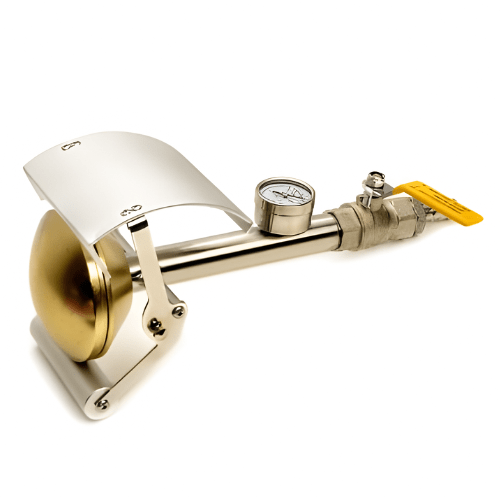

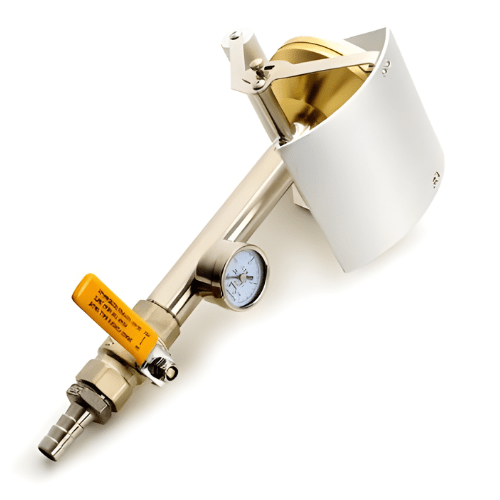

Acoustic Testing Pro IEC water test device IPX 3 or 4 is a hand-held test device to verify protection against spraying and splashing water. The water pressure can be adjusted using the flow control knob on the device to give the required flow rate. The pressure can be seen on the gauge which is convenient positioned by the Spray Tester IPX 3 or 4. The spray pattern of the nozzle is made to the specifications of IE60529. The removable shield feature make it easy to test without the interference of the shield.
Technical Specifications
| Water supply | Water flow rate is 50 kpa to 150 kpa clean water without inclusion |
| Spray nozzle parItema meters | External diameter: 102 mM Spherical diameter: S 75.5 mm There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is 30° There are 96 holes in the external circle of holes of which the included angle is 15° |
| Water flow | 10 L per min ± 5 %, Flow meter is adjustable |
| Range of pressure gauge | 0 Mpa to 0.4 Mpa |
| Baffle | removable |
| Pressure gauge | 0 MPa to 0.25 MPa |
| Site requirements | Dedicated IP waterproof test room The ground should be flat with illumination with good function of inflow and drainage |
| Reference | IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1 |
