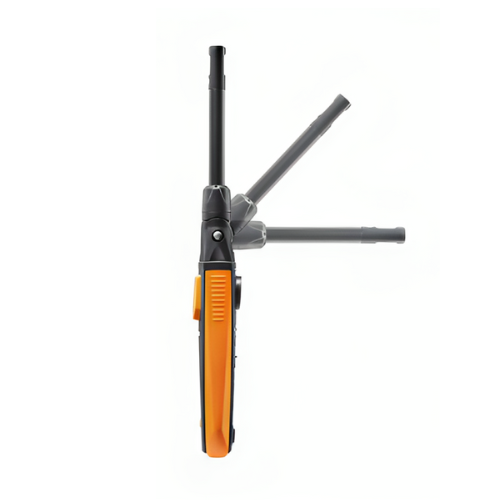

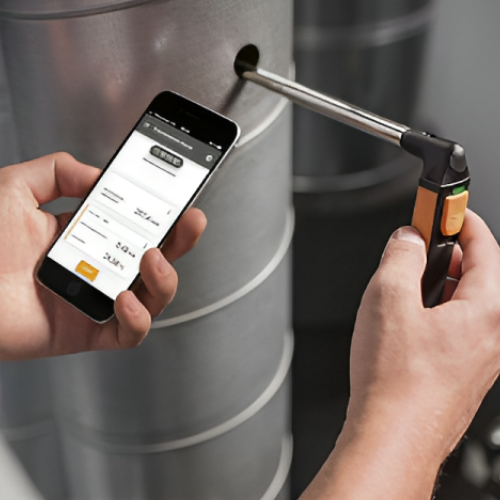

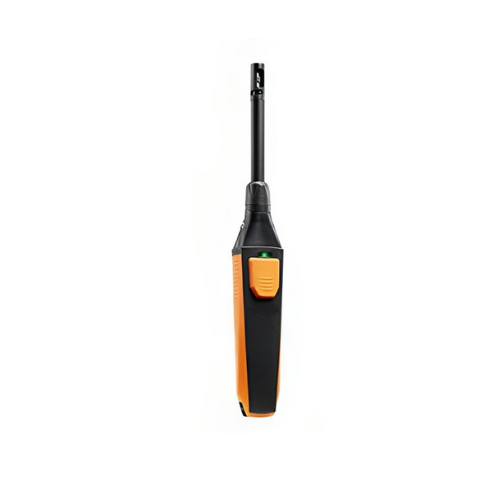

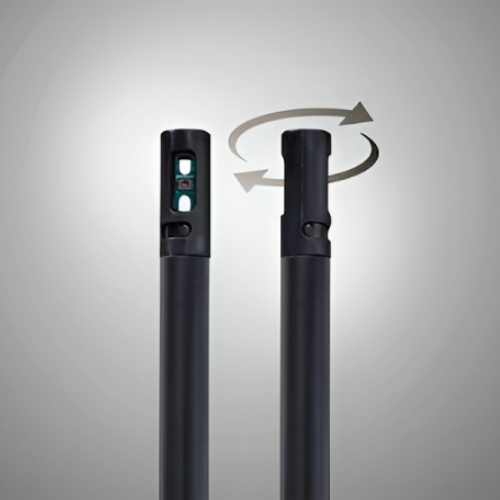

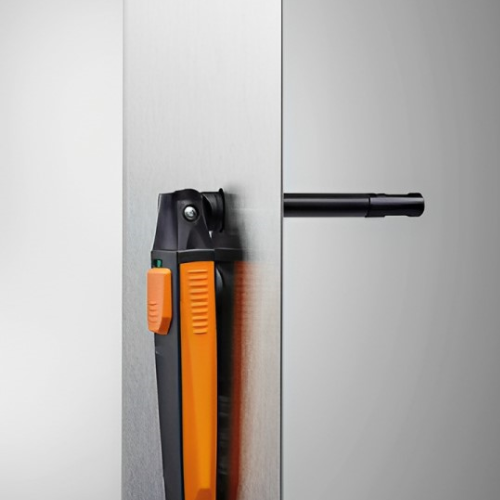

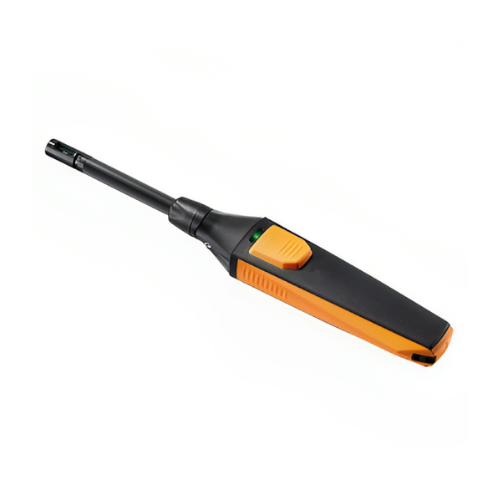

Acoustic Testing Pro Humidity Temperature Probe Data Logger
Acoustic Testing Pro humidity temperature probe data logger can be used with a compatible multifunction measuring instrument to measure relative humidity and air temperature.
Overview
Acoustic Testing Pro humidity temperature probe data logger can be used with a compatible multifunction measuring instrument to measure relative humidity and air temperature. Wet bulb temperature, dew point and absolute humidity are calculated at the same time.
Features
• Intuitive
• Precise
• Convenient
• High precision humidity or temperature probe
• Space saving
• Intelligent calibration concept
Technical Specifications
| Diameter probe shaft | 0.47 in (12 mm) |
| Cable length | 4.59 ft (1.4 m) |
| Length probe shaft | 5.51 in (140 mm) |
| Measuring range | 0 % RH to 100 % RH |
| Accuracy | ±(0.6 % RH + 0.7 % of mv) (0 % RH to 90 %RH) , ±(1.0 % RH + 0.7 % of mv) (90 % RH to 100 %RH) , ±0.03 % RH per K (k=1) , Long term stability ±1% RH per yr , Hysteresis ±0.4% RH |
| Resolution | 0.01 RH |
| Measuring range | -4 °F to 158 °F (-20 °C to 70 °C) |
| Accuracy | ±0.54 °F (±0.3 °C) 59 °F to 86 °F (15 °C to 30 °C), ±0.9 °F (±0.5 °C) (Remaining Range) |
| Resolution | 32.02 °F 0.01 °C |
| Storage Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Operating Temperature | 23 °F to 122 °F (-5 °C to 50 °C) |
| Dimensions | 11.42 in x 1.97 in x 1.57 in (290 mm x 50 mm x 40 mm) |
| Weight | 0.35 lb (160 g) |
