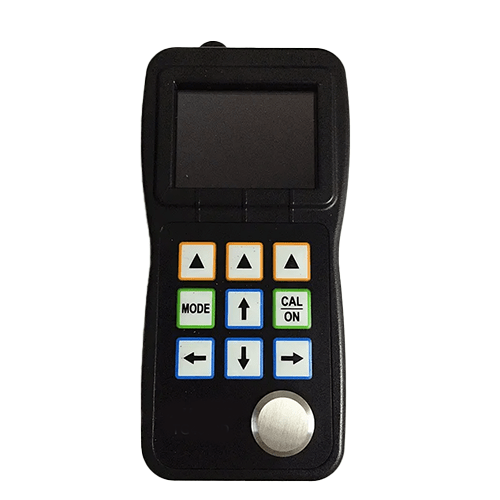

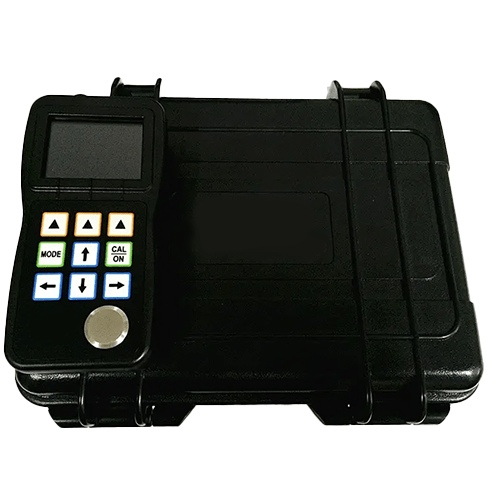

Acoustic Testing Pro High Temperature Resistant Ultrasonic Thickness Gauge
Acoustic Testing Pro high temperature resistant ultrasonic is a new generation thickness gauge, Breakthrough technology provides a thickness gauge with better performance for the same budget.
Overview
Acoustic Testing Pro high temperature resistant ultrasonic is a new generation thickness gauge, Breakthrough technology provides a thickness gauge with better performance for the same budget. It greatly improves the performance of previous ultrasonic thickness gauges and has better measurement stability and repeatability. It is widely used for wall thickness measurement of pipelines, pressure vessels and storage tanks in petrochemical, electric power, ships and manufacturing industries.
Technical Specifications
| Measuring Range | 0.025 in to 20.00 in (0.65 mm to 508 mm) depends on the probe used |
| Measurement Resolution | 0.001 in or 0.01 in (0.01 mm or 0.1 mm) |
| Power Supply | Two AA batteries |
| Display | 2.4 QVGA (320 × 240) color OLED screen with contrast ratio of 10000: 1 |
| Repeatability | ± 0.0019 in (0.05 mm) |
| The Measurement Update Rate | 4 HZ, 8 HZ and 16 HZ per second are optional |
| Working Temperature | 14 ºF to 122 ºF (-10 ºC to +50 ºC), with special requirements up to -4 ºF (-20 ºC) |
| Operating Time | Two AA batteries for more than 35 hours |
| The Sound Speed Range Of The Material | 500 m/s to 9999 m/s, 0.0179 in/us to 0.3937 in/us |
| Size | 6.02 in x 2.99 in x 1.46 in (153 mm x 76 mm x 37 mm) |
| Weight | 0.61 lb (280 g) (including battery) |
