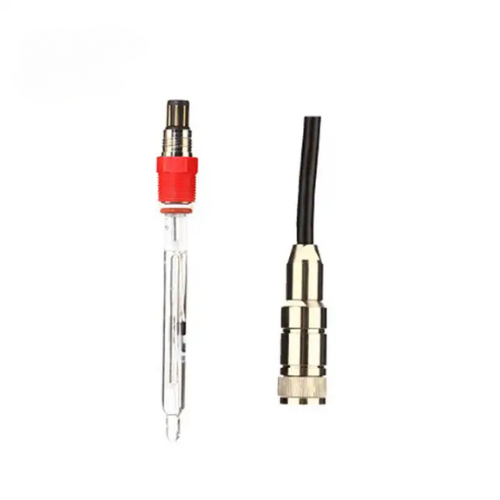

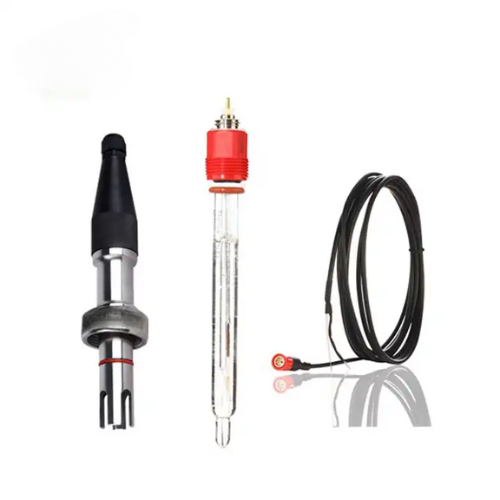

Acoustic Testing Pro High-Temperature pH Sensor
Acoustic Testing Pro high-temperature pH sensor is designed with a double-chamber reference system of high temperature-resistant gel and solid electrolyte as well as fully suitable for high-temperature service with a stable precise pH measurement and low maintenance.
Overview
Acoustic Testing Pro high-temperature pH sensor is designed with a double-chamber reference system of high temperature-resistant gel and solid electrolyte as well as fully suitable for high-temperature service with a stable precise pH measurement and low maintenance. It is mainly focusing on bio-fermentation, pharmaceutical, chemical, food, beverage, and starch process applications due to its special pH glass and reference system design for CIP or SIP autoclavable and sterilizable up to 266 °F (130 ℃).
Technical Specifications
| pH Measuring range | 0.00 pH to 14.00 pH |
| Conductivity Measuring range | 0.01 us/cm to 20 us/cm |
| Dissolved Oxygen Measuring range | 0 20 mg/L to 20 mg/L |
| Communication | RS 485 Modbus RTU |
| Power | 220 VAC, 90 VAC to 260 VAC |
| Temperature detector | PT 100, PT 1000, NTC 10K, NTC 22K optional |
| Reference system | High temperature resistant gel and polymeric electrolyte, double chamber reference system or with silver ion trap |
| Junction | Ceramic (1 x) |
| Process adaptation | PG 13.5 |
| protection level | IP 65 |
| Temperature | 32 °F to 266 °F (0 °C to 130 °C) |
| Immersion depth | 4.72 in, 5.90 in, 8.85 in, 12.79 in (120 mm 150 mm, 225 mm, 325 mm optional) |
| Diameter | 0.47 in (12 mm) |
