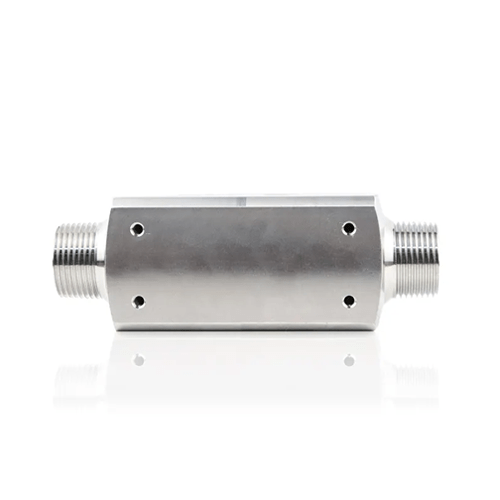

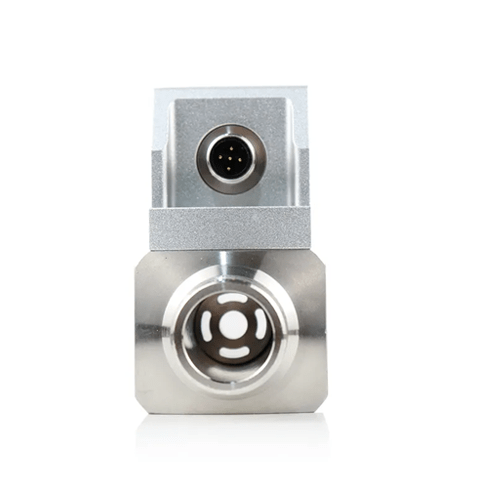

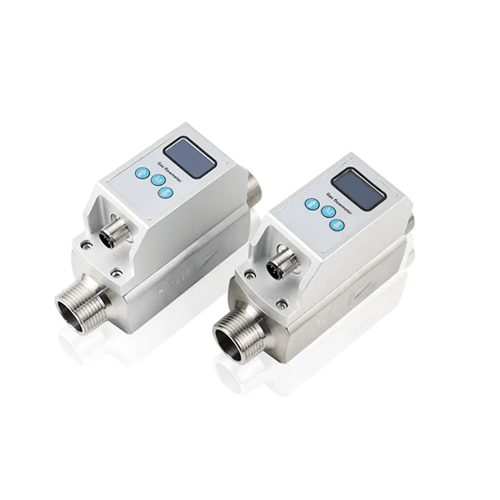

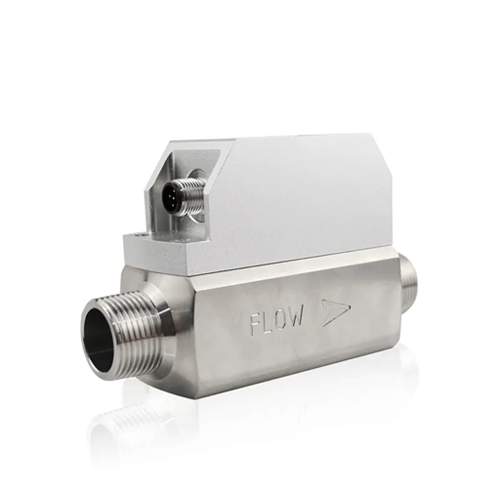

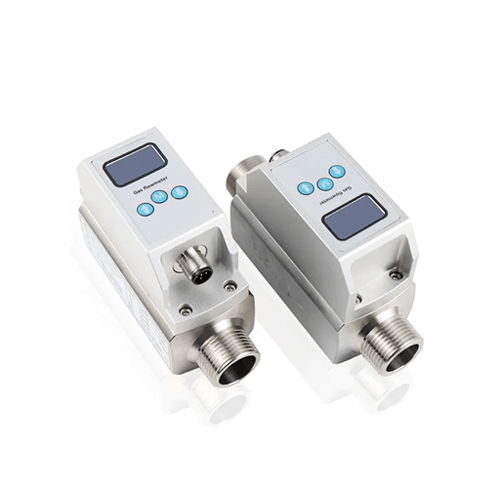

Acoustic Testing Pro High Sensitivity Gas Flow Measurement Instrument
This High Sensitivity Gas Flow Meter offers precision monitoring with a flow range of 0 slpm to 1000 slpm, ±1.5% accuracy, and a rapid 20 ms response time.
Features
- LED Display
- Corrosion resistant
- small volume
- R3/4 external thread connection method
- M12 aviation plug
Technical Specification
| Flow range | 0 slpm, to 300 slpm, 500 slpm, 600 slpm, 800 slpm, 1000 slpm |
| Power supply | 8 V to 24 V DC, 50 mA |
| Precision | ±1.5% |
| Response time | 20 MS |
| Maximum pressure | 116.03 PSI |
| Communication methods | I2C/RS485 (MODBUS) |
| Output way | Analog output 1 V to 5 V DC |
| Medium temperature | 14 °F to 149 °F (-10 °C to 65 °C) |
| environment temperature | -13 °F to 185 °F (-25 °C to 85 °C) |
| Interface | G3/4 |
