Acoustic Testing Pro High Precision Ultrasonic Thickness Gauge
Acoustic Testing Pro high precision ultrasonic thickness gauge Uses Multiple Echoes to Improve Precision, with Resolution up to 0.001mm and Measurement Lower Limit as Low as 0.2 mm.
Overview
Acoustic Testing Pro high precision ultrasonic thickness gauge Uses Multiple Echoes to Improve Precision, with Resolution up to 0.001mm and Measurement Lower Limit as Low as 0.2 mm. In addition, it provides A and B scanning functions. Through echo display, users can be helped to better control measurement, so that the thickness measurement range is wider, the measurement value is more accurate, and errors related to materials in measurement can be avoided.This instrument can be widely used for measuring the thickness of metal materials. For thin part measurement and high precision measurement, more see its advantages. In addition, the instrument can penetrate thin coatings and paint layers, and can be used for measuring ultra-thin walls with paint layers such as fire extinguishers.
Features
- Ultrasonic high precision, 0.001mm resolution
- Designed for thin parts, the limit is 2 mm
- 4-inch QVGA (320*240 dot matrix) colour
- Live Color A-Scan and Time-based B-Scan
- Unique Multiple Verification Mode
- Adjustable blank gate according to the measured waveform
- Has the function of penetrating the coating.
- Store 100,000 thickness values and 1000 waveforms. (PM-5DL.)
Technical Specifications
| Measuring Range | 0.0079 in to 1.06 in (0.2 mm to 27 mm) |
| Operating Time | Two AA batteries for more than 35 hours |
| Automatically Shut Down | Optional 5, 10, 20 minutes after no operation automatically shut down, or only manually shut down |
| Working Temperature | -50 °F to 122 °F, with special requirements up to -68 °F (-10 ℃ to +50℃, with special requirements up to -20℃) |
| Size | 6.02 in × 2.99 in × 1.46 in (153 mm × 76 mm × 37 mm) |
| Weight | 0.62 lb (280 g including battery) |

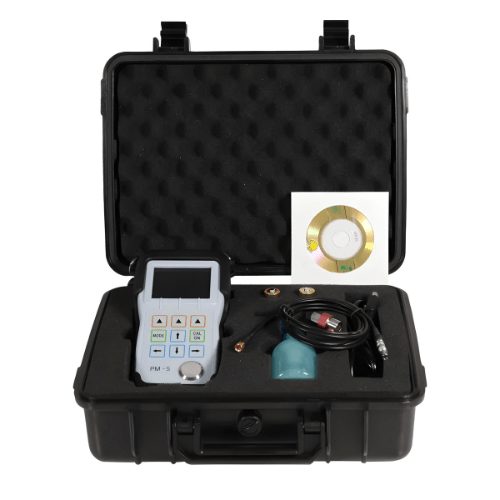

| Standard Configuration | Thickness gauge host, standard probe, instrument box, two alkaline batteries, coupling agent, operation manual, certificate of approval, packing list, 1 data communication line and 1 software CD |
