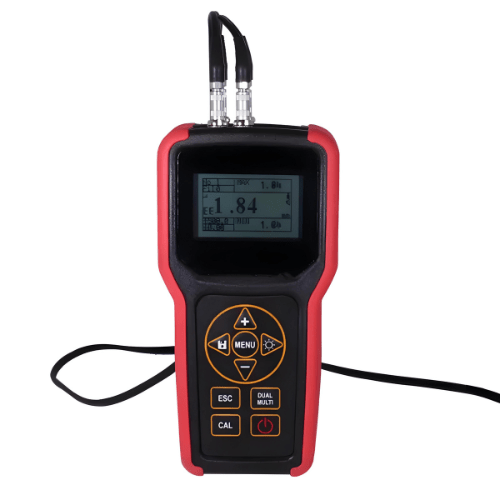

Acoustic Testing Pro High Precision Thickness
High precision thickness is based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy.
Overview
High precision thickness is based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.03 / 0.039 inches. It is suitable for a variety of metallic and non metallic materials.
Technical Specifications
| Measuring Range | 2.9 in to 15.7 in (0.75 mm to 400 mm) |
| Sound Velocity | 3280.8 ft/s to 32805.1 ft/s, (1000 m/s to 9999 m/s) |
| Resolution | 0.03 in (0.1 mm) |
| Accuracy | ± 0.5%H + 0.03 in ± (0.5%H + 0.01 mm) |
| Storage Ability | Memory 1000 group |
| Working Voltage | 3V 4 AA size |
| Size | 5.9 in x 2.9 in x 1.2 in (150 mm × 74 mm × 32 mm) |
| Weight | 0.5 lb (245 g) |
