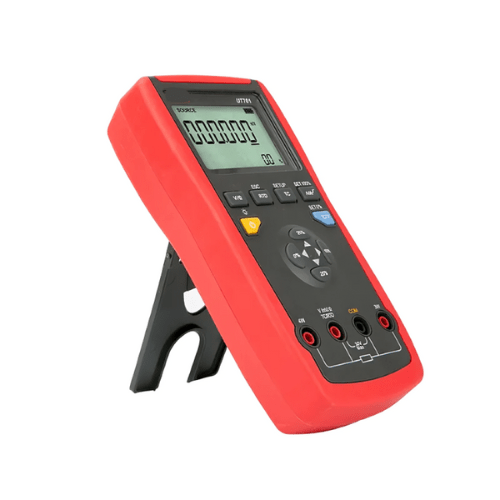

Acoustic Testing Pro High Precision Dc Voltage Temperature Calibrator
Acoustic Testing Pro high precision dc voltage temperature calibrator is equipped with 10 types of thermocouples, 4 types of thermal resistance, and voltage/resistance output functions, which are professional and convenient for users to calibrate and maintain various temperature testers.
Overview
Acoustic Testing Pro high precision dc voltage temperature calibrator is equipped with 10 types of thermocouples, 4 types of thermal resistance, and voltage/resistance output functions, which are professional and convenient for users to calibrate and maintain various temperature testers. Easy-to-operate keys, selectable steps and ramp outputs make operation efficient and accurate. It features LCD backlight, auto power off, two-color injection molded case, and 1m drop resistance.
Features
- Up to 0.05% output accuracy
- 6 digit display 3 Output functions DC voltage, resistance, thermocouple
- RTD4 10 thermocouple scales 54 RTD
- Scales 6 High precision automatic cold junction compensation
- Thermocouple output 7 Manual stepping
- Automatic stepping and ramp 8 to store and recall settings
Technical Specifications
| DC mV | 100 mV ± (0.05%+20) 1000 mV ± (0.05%+3) |
| Resistance | 500.0 Ω ± (0.05%+2) 5000 Ω ± (0.05%+2) |
| Ramps | Slow ramp, fast ramp, 25% step-ramp |
| Steps | 25% of range, 100% of range |
| Product Size | 3.78 in x 7.59 in x 1.85 in (96 mm x193 mm x 47 mm) |
| Product bare metal weight | 0.90 lb (410 g) |
