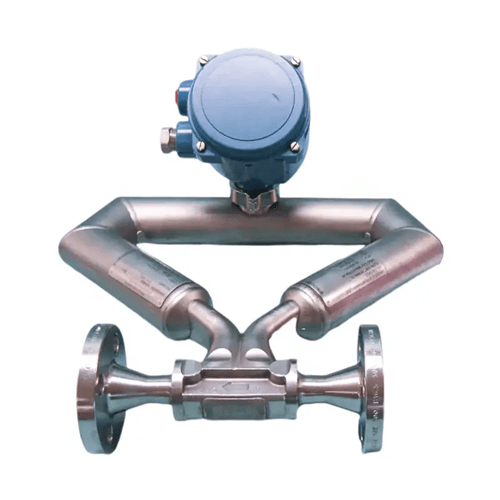

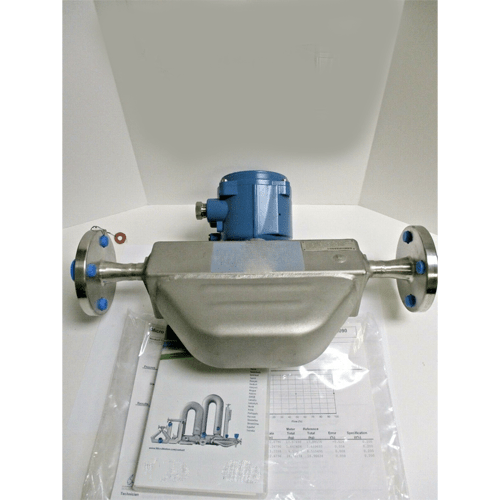

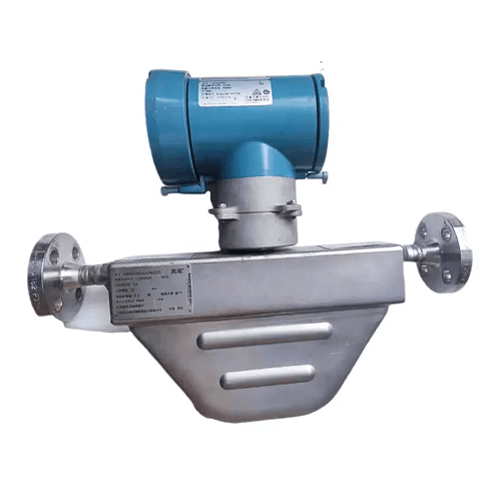

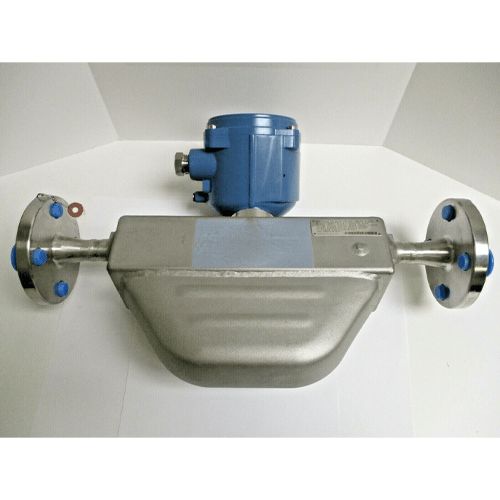

Acoustic Testing Pro High Accuracy Mass Flow Meter
Acoustic Testing Pro high accuracy mass flow meter is used for highly precise, stable and consistent measurement and monitoring in real time of the gas content/liquid content, gas flow, liquid flow, and total flow in natural gas/shale gas.
Overview
Acoustic Testing Pro high accuracy mass flow meter is used for highly precise, stable and consistent measurement and monitoring in real time of the gas content/liquid content, gas flow, liquid flow, and total flow in natural gas/shale gas.
Features
- Metering the production process of natural gas at wellhead
- High accuracy and reliability
- Measurement in real time
- Stable and reliable data
- No radiative source
Technical specification
| Flow Meter Size | DN 50 to DN 200 |
| Gas Content in Mass | 0% to 100% |
| Material | 304, 316L (can be customized) |
| Design Pressure | 6.3 MPa to 43 MPa |
| Protection Rating | IP 67 |
| Ambient Temperature | -40 °F to 131 °F (-40 °C to 55 °C) |
| Size | 6.57 in × 23.26 in × 28.14 in (167 mm × 591 mm × 715 mm) |
