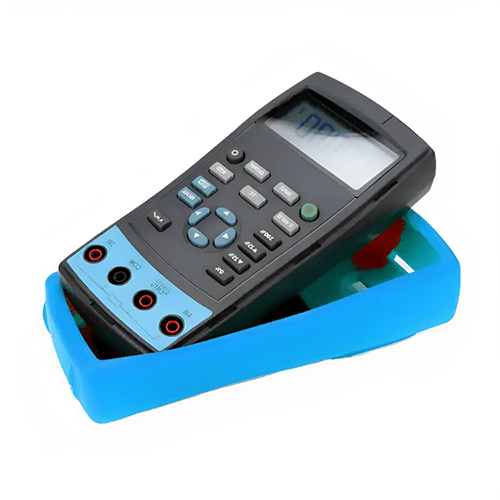

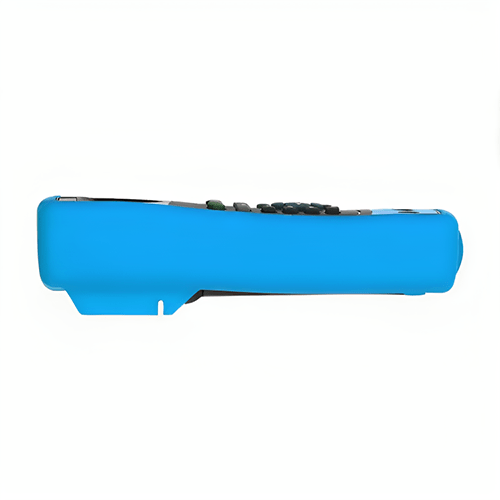

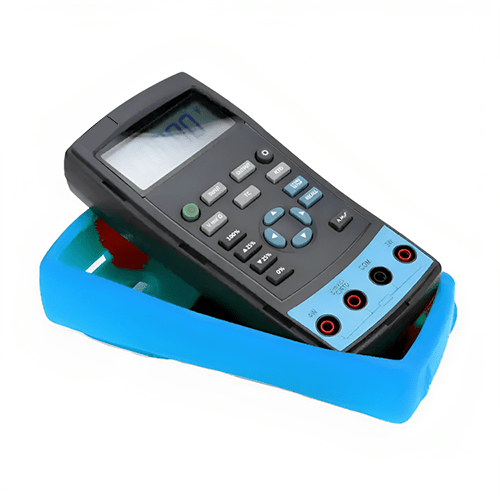

Acoustic Testing Pro Handheld Multifunction Process Calibrator
This Handheld Multifunction Process Calibrator has a DC V range of 0 V to 30 V, relative humidity of 0% to 90%, and a DC mV of -15 mV to 80 mV.
Features
- It allows you to measure DC V, DC mV, resistance, TC and RTD
- Outputs resistance, simulation of TC and RTD
- Automatic and manual cold end temperature compensation for TC
- Manual stepping, automatic stepping, 0% to 100% phase step, and ramp output
- Super-strong protection: The waterproof grade is IP67
- Automatic protection against the signal terminals connects to the 220 V
Technical Specifications
| DC V | 0 V to 30 V |
| DC mV | -15 mV to 80 mV |
| Resistance (2 wire, 3 wire) | 0 Ω to 440 Ω 400 Ω to 3200 Ω |
| Resistance (4 wire) | 0 Ω to 440 Ω 400 Ω to 3200 Ω |
| Relative Humidity | 0% RH to 90% RH, Non-condensed dew |
| Communication Mode | RS 232 |
| RTD | Cu100, Cu50, Pt100, Pt1000 |
| Power Supply Mode | Ni MH battery or AC adapters |
| Use Temperature | 14 °F to 131 °F (-10 °C to 55 °C) |
| Storage Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Outline Dimension | 7.28 in x 3.66 in x 1.85 in (185 mm x 93 mm x 47 mm) |
| Weight | 0.77 lb. (350 g) |
