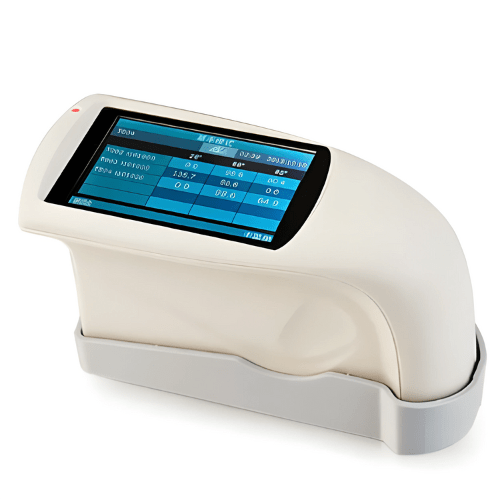

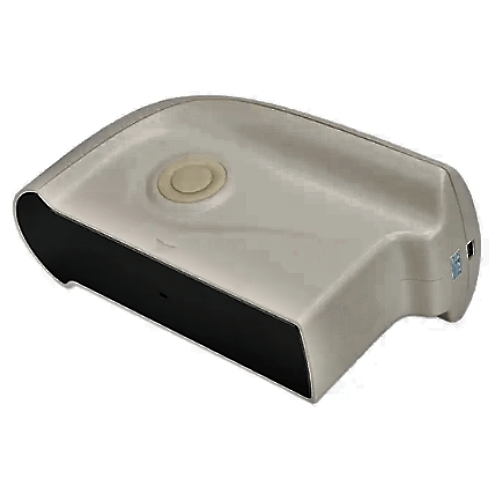

Acoustic Testing Pro Handheld Gloss Meter
Acoustic Testing Pro Handheld Gloss Meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754.
Overview
Acoustic Testing Pro Handheld Gloss Meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. The GAOTEK Gloss Meter is a first-class working requirement, corresponding with CIE 1931(2°) under CIE C light source. This Handheld Gloss Meter is widely used to test glossiness in the industries.
Features
- 60° angle for semi-gloss
- Concise appearance, feel good
- Display 5 sets of measurement data
- Good for comparison
- Built-in lithium-ion rechargeable battery
- Basic model measurement can meet basic glossiness testing requirements
- Connect to PC, more extend functions
- one button for all angle measuring at the same location
- Comply with international standards
- Stable performance
- Easy to read data
Technical Specifications
| Measuring Angle | 60 ° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Range | 0 GU to 300 GU |
| Division Value | 0.1 GU |
| Measurement Range | 0 GU to 10 GU, 10 GU to 100 GU, 100 GU to 300 GU |
| Repeatability | ±0.1 GU ±0.2 GU ±0.2% GU |
| Reproducibility | ±0.2 GU ±0.5 GU ±0.5% GU |
| Chromaticity Corresponding | Corresponding with CIE 1931 (2 °) under CIE C light source |
| Errors | ±1.5, ±1.5% |
| Measuring Time | 0.5 s |
| Battery | 3.7 V, 3200 mAh Li-ion Battery, >10000 times (within 8 hours) |
| Display | TFT 3.5 in |
| Interface | USB or RS-232 |
| Storage | Basic mode: 1000 |
| Humidity | <85% relative humidity, no condensation |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Measuring Area | 0.35 in × 0.59 in (9 mm x 15 mm) |
| Dimensions | 6.30 in × 2.95 in × 3.54 in (160 mm x 75 mm x 90 mm) |
| Weight | 0.77 lb (350 gm) |
