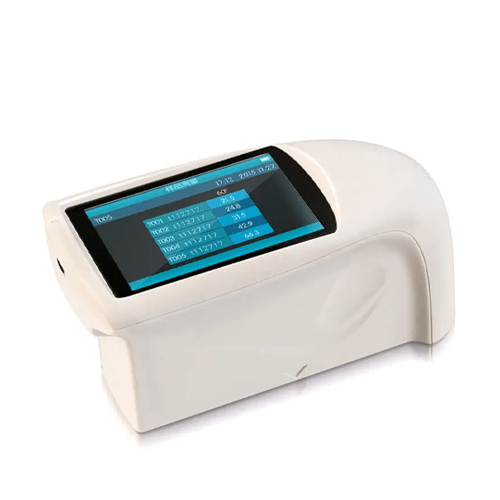

Acoustic Testing Pro Gloss Tester Meter
Acoustic Testing Pro gloss tester meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
Overview
Acoustic Testing Pro gloss tester meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
Features
- Concise appearance, feel good
- Display 5 sets of measurement data, good for comparison
- Built-in lithium ion rechargeable battery
- Basic model measurement can meet basic glossiness testing requirements
- Connect to PC, more extend functions
- One button for all angles measurement at the same location
- Comply with international standards
- Stable performance, easy to read data
Technical Description
| Measuring Angle | 20°/60°/85° |
| Measuring Area | 20° 0.39 in x 0.39 in (10 mm x 10 mm)
60° 0.35 in x 0.59 in (9 mm x 15 mm) 85° 0.19 in x 1.4 in (5 mm x 36 mm) |
| Measuring Range | 20° 0 GU to 1000 GU
60° 0 GU to 1000 GU 85° 0 GU to 160 GU |
| Division Value | 0.1 GU |
| Measurement Range | 0 GU to 10 GU, 10 GU to 100 GU, 100 GU to 300 GU |
| Repeatability Reproducibility |
± 0.1 GU, ± 0.2 GU, ± 0.2% GU, ± 0.2 GU, ± 0.5 GU, ± 0.5% GU |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.5, ± 1.5% |
| Measuring Time | 0.5 s |
| Battery | 3.7 V, 3200 mAh Li-ion Battery, >10000 times (within 8 hrs) |
| Interface | USB / RS-232 |
| Storage | Basic mode: 1000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
| Operation Temperature | 32 °F to 104 °F (0 °C to 40 ℃) |
| Storage Temperature | 4 °F to 122 °F (-20 °C to 50 ℃) |
| Humidity | <85% relative humidity, no condensation |
| Dimension | 6.3 in x 2.95 in x 3.5 in (160 mm x 75 mm x 90 mm) |
| Weight | 0.8 lb (350 g) |
