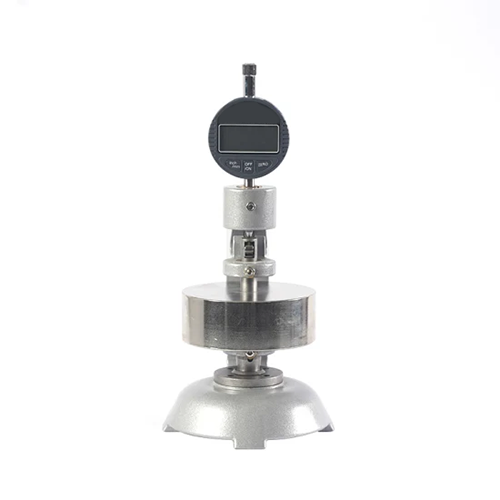

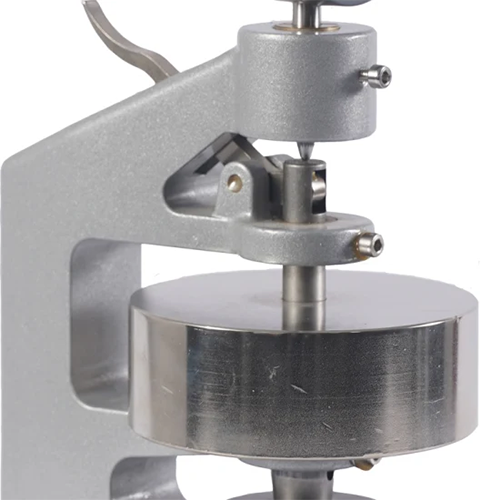

Acoustic Testing Pro Film and Board Thickness Gauge
Acoustic Testing Pro Film and Board Thickness Gauge Paper Thickness Tester is a special instrument for measuring the thickness of paper and cardboard.
Overview
Acoustic Testing Pro Film and Board Thickness Gauge Paper Thickness Tester is a special instrument for measuring the thickness of paper and cardboard. It is suitable for measuring the thickness of various papers below 4mm. It can be widely used for measuring the thickness of paper and other sheet materials.
Features
- Precise thickness measurement
- Durable construction

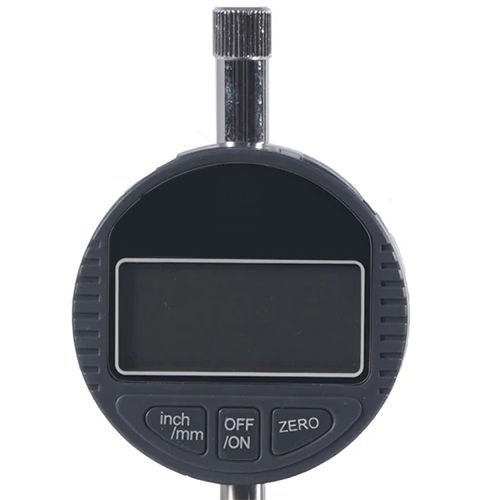

- Easy-to-read display
- User-friendly interface
- Accurate and reliable readings
- Measuring range [specify the range, if available]
- Versatile applications
- Compact and portable design
- Quick and efficient measurements
- Calibration function
- Auto shut-off for power saving
- Metric and imperial unit conversion
- Data hold and memory function
- Zero-setting capability
- Battery level indicator
Technical Specifications
| Measuring Range | 0 in to 0.16 in (0 mm to 4 mm) |
| Dividing | 0.0003937 in (0.01 mm) |
| Contact Pressure | (100 ± 10) kPa |
| Contact Area | (200 ± 5) mm² |
| Parallelism of Surface Measurement | ≤0.0000787402 in (0.002 mm) |
| Indication error | 0.0000984252 in (±0.0025 mm) or ±0.5% |
| Indication variability | 0.0000984252 in (≤0.0025 mm) or ≤0.5% |
| Dimension | 6.54 in x 4.92 in x 10.24 in (166 mm x 125 mm x 260 mm) |
| Net weight | 9.92 lb (4.5 kg) |
