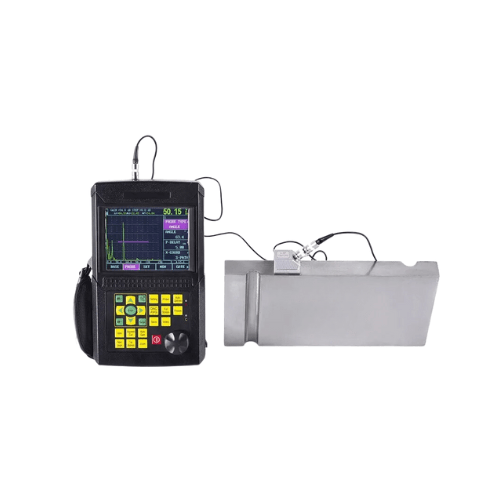

Name: Acoustic Testing Pro Ferroscanning Metal Ultrasonic Flaw Test Defects Detector - Acoustic Testing Pro
SKU: ACTPUFD-216

Features

Probe automatic calibration
DAC and AVG are automatically formed, and can be corrected and compensated
Freely switch to four kinds of standards (depth D, level P, distance S, amplitude H)
Functions such as Auto-gain and peak memory improve detection efficiency
Automatically calculate the φ value equivalent defects
13 built-in testing standards are available
Storage: 980 pieces of A-scan images and data
Power supply: rechargeable Li-ion battery, standby time more than 15hours
The width and intensity of launch pulse are adjustable
With the durable shell, oil-proof, waterproof and dust-proof
PC software is available for data analysis, management and reports printing

Technical Specifications

Operating Frequency	0.5 MHz to 15 MHz
Scan Range(mm)	0 in to 236.22 in (0 mm to 6000 mm)
Velocity Range(m/s)	1000 to 15000
Vertical Linearity Error	≤3 %
Dynamic Range	≥32 dB
Horizontal Linearity Error	≤0.2 %
Testing Sensitivity	≥62 dB (Depth 200 mm, Φ2 flat bottom hole)
Measuring Channel	50
Storage	500
TCG Curve	No
B Scan	No
PC Connection	Yes
Video	No
Gain Range(dB)	0 to 110
Standard Probes	Straight probe: 2.5 MHz, diameter 20 mm, cable Q9 to Q9 Angle probe: 4 MHz, 60 degree, 0.32 in x 0.35 in (8 mm x 9 mm), cable Q9-C5
Dimension	9.45 in x 6.30 in x 1.58 in (240mm × 160 mm × 40 mm)
Weight	2.65 lb. (1.2 kg)

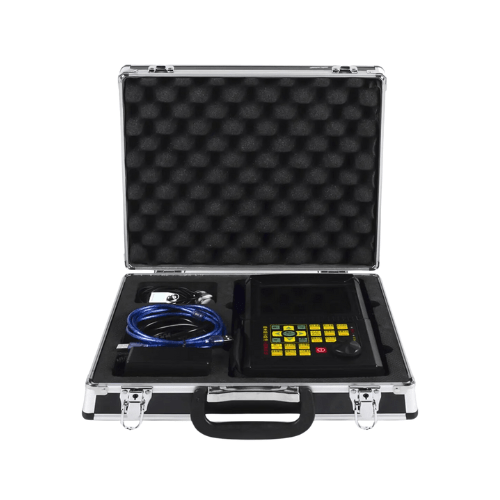

Standard Delivery	Main Unit, Straight probe, Angle probe, Power adapter, NC cables, PC software, Manual, Certificate, Warranty card
Optional Accessories	Optional probes, Cables, Calibration blocks, Coupling agent
