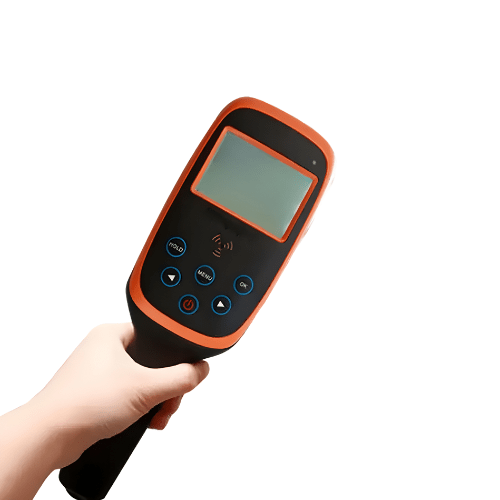

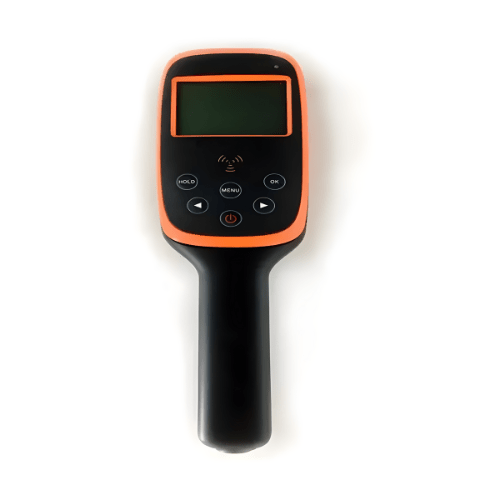

Acoustic Testing Pro Electromagnetic Field Radiation Tester
Acoustic Testing Pro electromagnetic field radiation tester is small, lightweight, easy to carry, and can maintain real-time maximum, and can be charged online, is a new cost-effective multi-function ray radiation detector.
Overview
Acoustic Testing Pro electromagnetic field radiation tester is small, lightweight, easy to carry, and can maintain real-time maximum, and can be charged online, is a new cost-effective multi-function ray radiation detector. It is engaged in contact with isotopic or radiation device related staff, production and processing materials, import and export products safety radiation, electronic equipment, personal dose monitoring and other multi-functional radiation safety monitoring instruments. The instrument simultaneously measures α, β, γ and Χ -ray, showing the unit µ Sv / h, mR / h, cps, cpm.Total. Users can set the alarm threshold of dose equivalent rate according to the needs of use. Advanced energy compensation technology is adopted, which makes this device measurement of different energy rays with good accuracy and meets the needs of different users.
Technical Specifications
| Range | 0.001 mR/h to 100 mR/h 0.01µ Sv/h to 1000 µSv/h 0 CPM to 300000 CPM 0 X Total to 9999 X Total |
| Display | 2.3622 in x 1.6535 in (60 mm x 42 mm) large screen high-definition LCD display (six-digit LCD display) |
| CAL Factor | 0.01 to 9999 |
| Ray Selection Switch | Combination switch selection for α, β, γ and Χ-Ray |
| Sensor | GM tube with thin mica window, 1.4 mg/cm2 to 2.0 mg/cm2 areal density. The effective diameter of the window is 45 mm (1.75 in.) |
| Display Units | µSv/h ,mR/h,cps,cpm,Total,HOLD,Alarm value, battery level |
| Alarm Method | Audible and visual alarm |
| Energy Range | 20 KeV to 3 Mev |
| Alarm Function | Self-setting alarm value, factory designed for 1 µSv/h |
| Display Conversion | Yes |
| Maintain Maximum Conversion | Yes |
| Accuracy | ±10% |
| Detector Operating Temperature | -58 °F to 176 °F ( -50 °C to 80 °C) |
| Size | 11.063 in × 3.150 in × 1.378 in (281 mm x 80 mm x 35 mm) |
| Weight | 0.794 lb (0.36 kg) |
