Acoustic Testing Pro Eddy Current Thickness Gauge Anticorrosive Anodic Coating

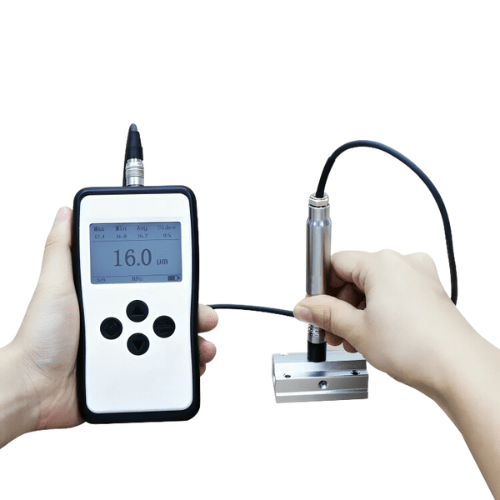

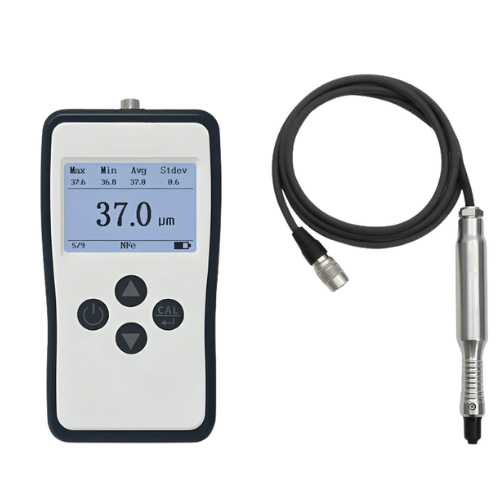

Acoustic Testing Pro Eddy Current Thickness Gauge Anticorrosive Anodic Coating is a split type of eddy current thickness gauge, which consists of the host and the non-ferrous probe.
Overview

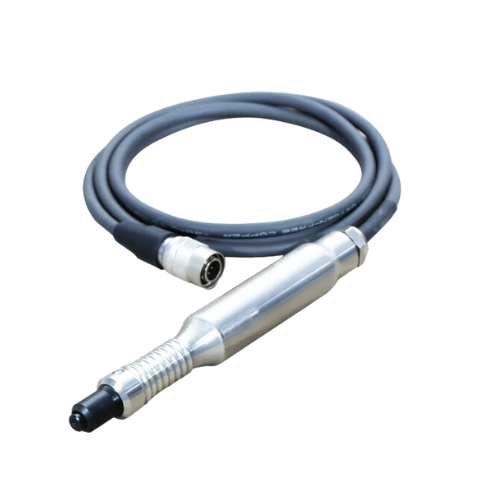

Acoustic Testing Pro Eddy Current Thickness Gauge Anticorrosive Anodic Coating is a split type of eddy current thickness gauge, which consists of the host and the non-ferrous probe. It adopts the eddy current induction principle. It has ultra-high measurement accuracy and repeatability. It is equipped with a probe, which is especially suitable for measuring ultra-thin coatings and various small-sized work pieces and special-shaped materials. It is mainly used to measure the thickness of the anodized layer on the surface of aluminum alloy profiles, aluminum plates, aluminum-plastic panels and various aluminum work pieces, as well as non-conductive coatings on non-ferrous metal substrates such as brass and copper.
Technical Specifications
| Display LCD Matrix | (240 mm × 160 mm) 9.45 In x 6.3 In |
| Power Supply | 4 pcs of 1.5V AAA alkaline battery |
| Operation Temperature Range | (0 ℃ to 50 ℃) 32 °F to 122 °F |
| Storage Temperature Range | (-20 ℃ to 60 ℃) -4 °F to 140 °F |
| Host Size (L*W*H) | (148 mm x 76 mm x 26 mm) 5.8 In x 2.9 In x 1.02 In |
| Weight (Include Battery) | (194 g) 0.43 Ib |
