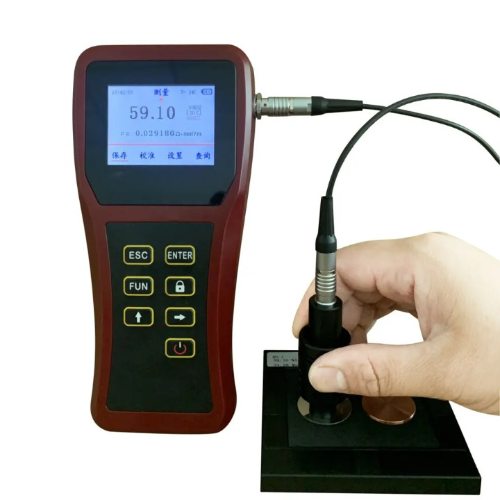

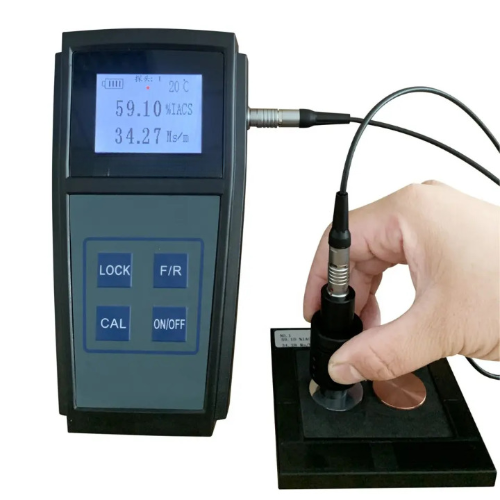

Acoustic Testing Pro Eddy Current Conductivity Tester
This Eddy Current Conductivity Tester has automatic Temperature of 68 oF, compensation range of 0 in to 0.019 in, and accuracy of ±0.1% to ±0.5%
Features
•The Tester uses 60 KHz (aviation industry standard) to inspirit
• Its big typeface, the back light illumination designs
• It uses the high property battery
• The design of the Tester has more advantages
•It can hold measurement data
Technical Specification
| Measurement technology | Eddy current |
| Operating frequency | Sine wave 60 KHz (standard); frequency can be customized (120 KHz, etc.) |
| Measuring range | Electrical conductivity: 6.9% IACS to 110% IACS (4 MS/m to 64 MS/m) |
| Resolution | 0.01% IACS (0.01 MS/m) |
| Detection accuracy | ±0.1%IACS to ±0.5%IACS |
| Lift-off effect compensation | 0 in to 0.019 in (0 mm to 0.5 mm) |
| Automatic temperature compensation function | The conductivity measurement results are automatically compensated to the 68 oF (20 °C) value. Combined with the temperature coefficient of the workpiece, the measurement accuracy can be ensured under different ambient temperatures. |
| Standard probe | The diameter is Φ 0.5 in (12.7 mm), the working frequency is 60 KHz, and the probe can be replaced by the user. |
| Custom probe | Diameter Φ 0.31 in (8 mm), the working frequency can be customized. The probe can be replaced by the user. |
