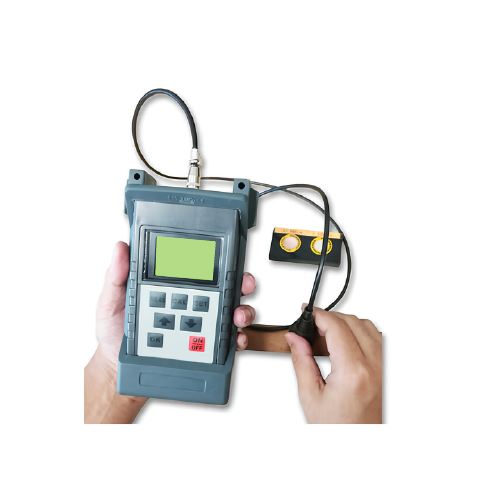

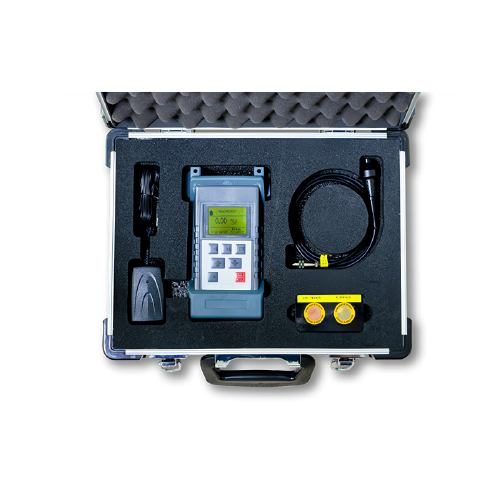

Acoustic Testing Pro Eddy Conductivity Tester

Overview

Acoustic Testing Pro Eddy Conductivity Tester is designed with an eddy detection method. These products may be used for distinguishing, grading and so forth detecting, on conductivity with non-ferromagnetic metal. These are commonly used in the industries of metallurgy, machinery, electric power, aviation, aerospace, nuclear, military, etc.

Features

• Easy to carry about and grasp, it’s convenient for calibration and bring about during going out
• Measuring range covers all nonferrous metal materials, 0.51~112%IACS or 0.3~65MS/m
•  Excellent design of temperature compensation and calibration style of the instrument enables the operation to be easier and more reliable
•  It is equipped with built-in data memory, enough to store 16000 groups of measured data and important measuring parameters. It is connected to a computer for forming a complete report

•  This instrument is excellent designed of lift-off compensation to ensure the precision of measurement
• There are two kinds of measuring units (MS/m or %IACS) for convenient selection. It is easy to switch to resistivity reading directly on the measurement interface.
• It displays simultaneously the measured result, the measuring frequency, the measuring time and so forth important parameters
• It is properly designed with back-light illumination for reading measured data in poor-light environment.

Technical Specification
