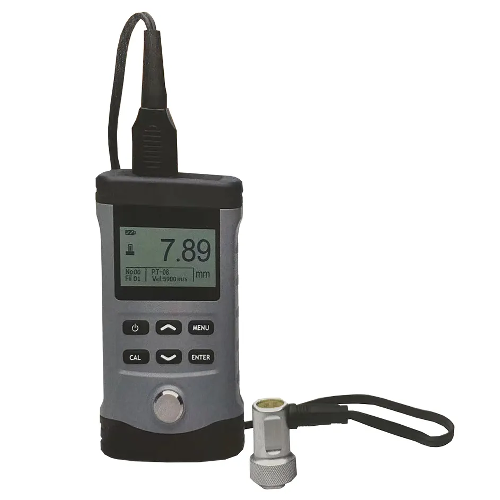

Name: Acoustic Testing Pro Echo Material Ultrasonic Thickness Gauge Tester - Acoustic Testing Pro
SKU: ACTPCMTG-209

Features

· Energy-saving

· Waterproof Keyboard

· Used for measuring of material thickness

· Used as a coating thickness gauge for measuring the coating thickness

· Auto adjustment for the measuring accuracy

Technical Specifications

Measurement range	launch-echo mode, 0.03 in to 19.68 in (1 mm to 500 mm) (according to the specific probe); echo-echo mode, 0.11 in to 0.78 in (3.0 mm to 20 mm)
Sound speed range	1000 m/s to 9990 m/s
Display digits	four digits
Indication accuracy	0.01 in (0.1 mm) measurement greater than 0.01 in (0.01 mm), measurement less than 3.93 in (100 mm)
Measurement error	H< 0.39 in (10 mm), ±0.05; H≥ 0.39 in (10 mm), ±(0.01 + H / 200). (H is the measured thickness value)
Use environment	Temperature: 14 °F to 140 °F (-10 °C to 60 °C); relative humidity less than 90%.
Measurement method	Manual storage measurement
Storage capacity	Divided into 6 groups, each group has 100 measurement points, a total of 600 measurement points
Power supply	Two AA batteries
Dimensions	5.78 in x 3.18 in x 1.18 in (146 mm x 81mm x 30 mm)
Weight	0.66 Ib (300 g)
