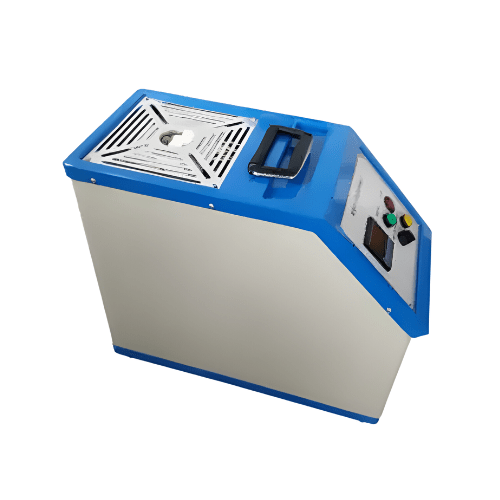

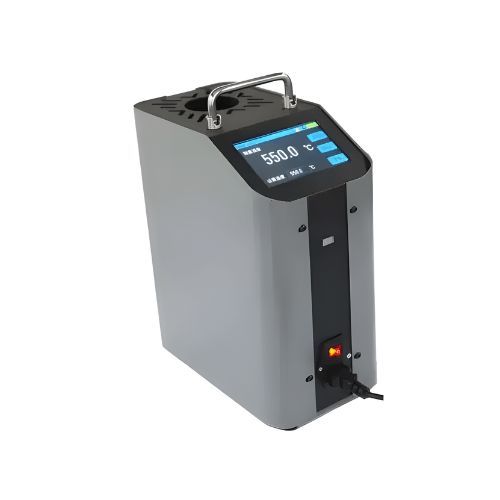

Acoustic Testing Pro Dry Block Portable Thermocouple Temperature
Acoustic Testing Pro dry block portable thermocouple temperature is high stability temperature controller, the heat block adopts a better thermal conductivity alloy material.
Overview
Acoustic Testing Pro dry block portable thermocouple temperature is high stability temperature controller, the heat block adopts a better thermal conductivity alloy material. Portable dry block Temperature calibrator is technically synchronous with the advanced technology at home and abroad, in the depth of the insert, the level of temperature field, the vertical temperature field and other technical aspects, it is leading level.
Technical Specifications
| Heat Source | Semiconductor refrigeration Electro thermal Electro thermal |
| Accuracy | 0.2% 0.2% 0.2% |
| Stability | 32.07 °F (±0.04 ℃) 32.18 °F (±0.1 ℃) 32.18 °F (±0.1 ℃) |
| Resolution | 32.18 °F (0.1 ℃) 32.18 °F (0.1 ℃) 32.18 °F (0.1 ℃) |
| Horizontal Temperature Field | 32.45 °F (≤±0.25 ℃) 32.18 °F (≤±0.1 ℃) 32.54 °F (≤±0.3 ℃) |
| Vertical Temperature Field | From the bottom of the well 1.18 in (30 mm) ≤32.9 °F (0.5 ℃) From the bottom of the well 1.18 in (30 mm) ≤32.9 °F (0.5 ℃) From the bottom of the well 1.18 in (30 mm) ≤32.9 °F (±0.5 ℃) |
| Well Depth | 5.90 in (150 mm) 7.87 in (200 mm) 7.87 in (200 mm) |
| Wellhead Size | 1.57 in (40 mm) 1.57 in (40 mm) 1.57 in (40 mm) |
| Power | 400 W 400 W 500 W |
| Power Supply | 220 V to 50 Hz |
| Hole Size | Φ 9 × 6 Φ 9 × 4 Φ 9 × 6 |
| Temperature Range | -4 °F to 302 °F ( -20 ℃ to 150 ℃) 122 °F to 1202 °F (50 ℃ to 650 ℃) 572 °F to 1832 °F (300 ℃ to 1000 ℃) |
| Box Size | 15.35 in x 7.28 in x 12.59 in (390 mm x 185 mm x 320 mm) 12.99 in x 6.49 in x 12.59 in (330 mm x 165 mm x 320 mm) 14.88 in x 7.16 in x 12.59 in (378 mm x 182 mm x320 mm) |
| Weight | 22.04 lb (10 kg) |
