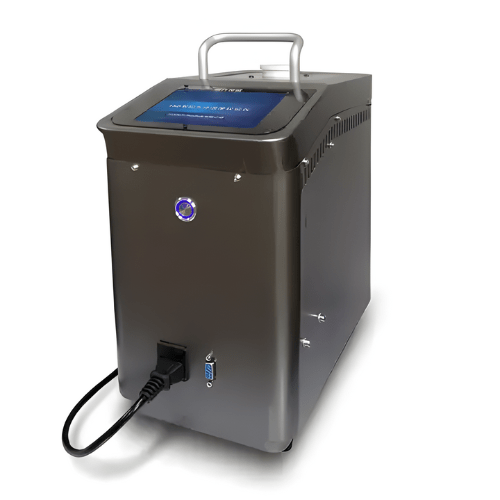

Acoustic Testing Pro Dry Block Calibrator Thermocouple Temperature
Acoustic Testing Pro Dry Block Calibrator Thermocouple Temperature is continuous improvement, quality and time saving features are on full display.
Overview
Acoustic Testing Pro dry block calibrator thermocouple temperature is continuous improvement, quality and time saving features are on full display. With three models to choose from, ranging from. You will find the perfect fit for your calibration needs. The process calibrator option adds an external reference input, a two to channel readout for UUT’s and a full complement of capabilities to help with everything from measuring temperature sensors, to calibrating thermocouples, self to calibrating the Reference Well and configuring HART transmitters.
Technical Specifications
| Display Resolution | 32.00 °F (0.001 °C) |
| Display Accuracy | 32.18 °F (±0.1 °C) |
| Temperature Stability | 32.09 °F (≤±0.05 ℃) |
| Horizontal Temperature Field | 32.18 °F (≤±0.1 ℃) |
| Vertical Temperature Field | From the bottom of the soaking block hole, the deviation within 1.57 in (40 mm) is 32.9 °F (≤ 0.5 ℃) |
| Insert Depth | 5.90 in (150 mm) |
| Soaking Block Aperture | Standard 4 holes 0.15 in (4 mm), 0.23 in (6 mm), 0.31 in (8 mm), 0.39 in (10 mm) |
| Outer Diameter of Soaking Block | 1.18 in (30 mm) |
| Maximum Power | 500 W |
| Power Supply | 200 V AC 50 Hz |
| Configuration | 1 main equipment, 1 soaking block, 1 power line, 1 certificate, 1 manual |
| Temperature Range | 14 °F to 131 °F (-25 °C to 150 °C) |
| Dimension | 13.38 in x 7.08 in x 14.96 in (340 mm x 180 mm x 380 mm) |
| Weight | 18.73 lb (8.5 kg) |
