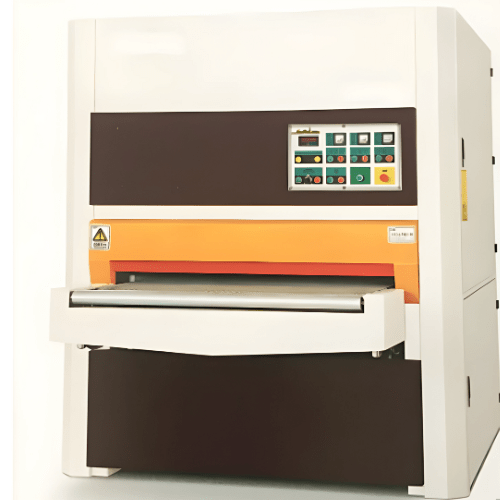

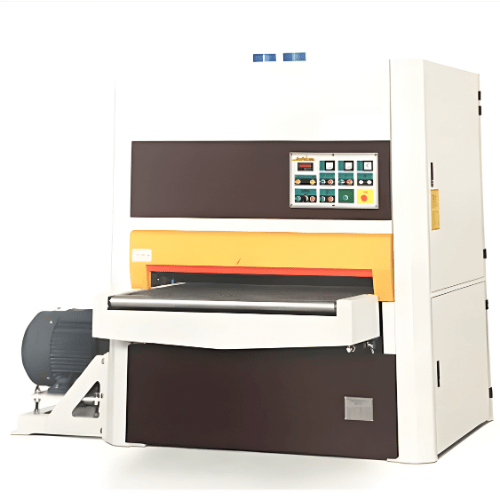

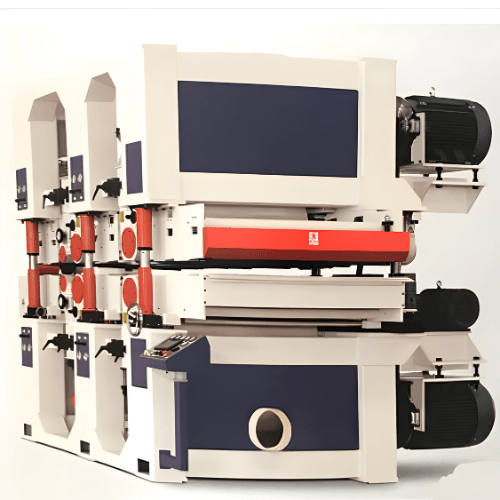

Acoustic Testing Pro Double Sides Thickness Calibration Sander
This double sides thickness calibration sander has a sanding board width 51 in, thickness 0.098 in to 3.14in, and an abrasive belt speed 18 or 16 m/s.
Technical Specifications
| Sanding Board Width | 51 in (1300mm) |
| Sanding Board Thickness | 0.098 in to 3.144 in (2.5 mm to 80 mm) |
| Sanding Board Width | 1.5 in to 51 in (40 mm to1300 mm) |
| Abrasive Belt Speed 1 | 18 or 16m/s |
| Abrasive Belt Speed 2 | 18 or 16m/s |
| Abrasive Belt Dimension | 53.5 in x 110 in (1360 mm x 2800 mm) |
| Total Motors Power | 320.2 kw |
| Main Motor | 75 x 4 kw |
| Conveyor Motor | 11 kw |
| Compressed Gas Consumption | 11.5 m3/min |
| Feed Speed | 6 to 30m/min |
