Acoustic Testing Pro Digital Ultrasonic Thickness Gauges

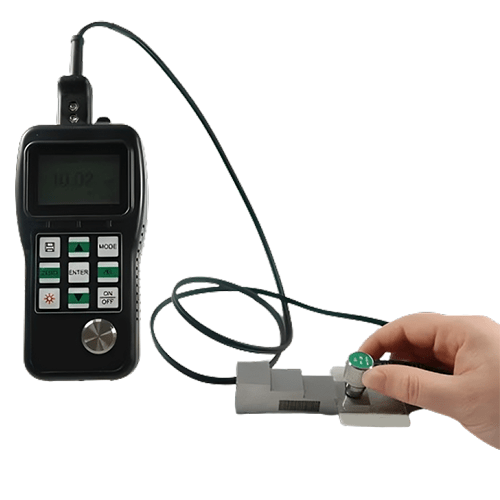

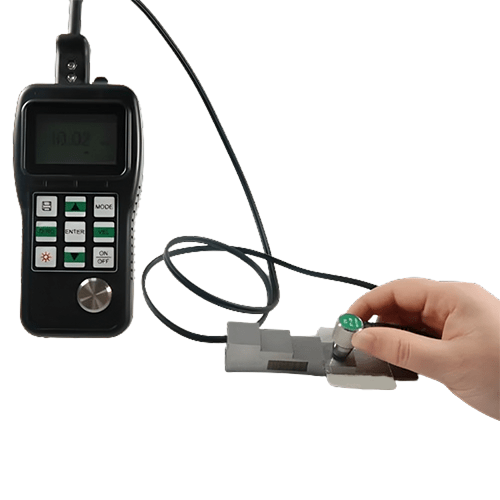

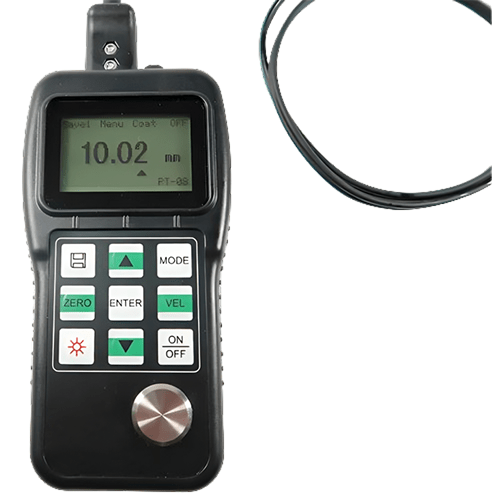

This digital ultrasonic thickness gauge has the power of 2 pcs. 1.5 v AA batteries, memory of 500 test values, and display of 4 digital LCD.
Features
- Automatic self calibration
- Couplant indicator
- Automatic power off device
- High-low limit alarm
- LCD brightness adjust
- Through coating capability
- Low battery indicator
Technical Specifications
| Measuring Range (Steel) | Standard 0.039 in to 9.84 in (0.8 mm to 250 mm) |
| Display Resolution | 0.01 in to 0.001 in (0.1 mm to 0.01 mm) |
| Tolerance | 0.0009 in (+/- 0.025 mm) |
| Velocity Range | 0.0393 to 0.3936 in/μs (1000 to 9999 m/s) |
| Display Type | 4 digital LCD with advanced backlight |
| Memory | 500 Test Values |
| Power | 2 pcs. 1.5 v AA Batteries |
| Outside Dimension | 5.86 in x 2.87 in x 1.25 in (149 mm × 73 mm × 32 mm) |
| Weight | 0.35 lb (160 g) |
