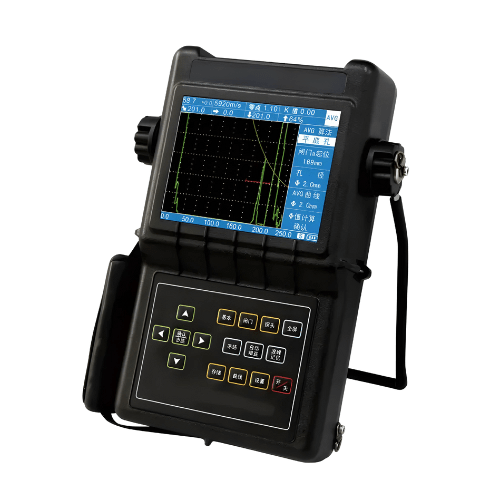

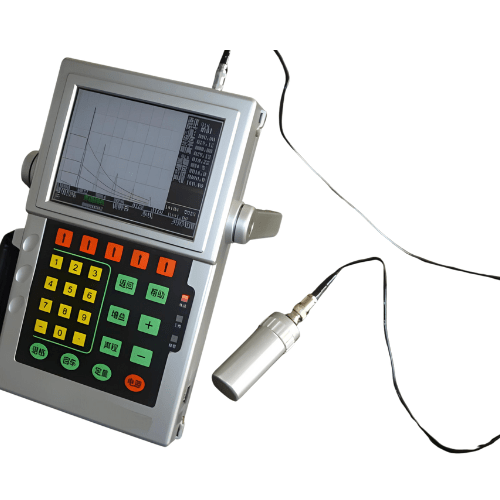

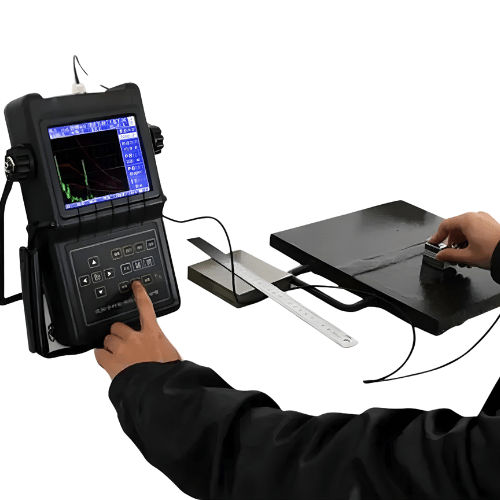

Acoustic Testing Pro Digital Ultrasonic Flaw Detector
Acoustic Testing Pro Digital Ultrasonic Flaw Detector can detect internal defects (such as cracks, inclusions, porosity, etc.) and can automatically locate, evaluate and diagnose.
Overview
Acoustic Testing Pro Digital Ultrasonic Flaw Detector can detect internal defects (such as cracks, inclusions, porosity, etc.) and can automatically locate, evaluate and diagnose.
Technical Specifications
| Gain Range | 0 dB to 120 dB, 0.1 dB, 2.0 dB, 6.0 dB Stepping |
| Frequency Range | 0.4 MHz to 20.0 MHz |
| Detection Range | 0.02 in to 236.22 in (0.5 mm to 6000 mm) |
| Sensitivity Margin | >62 dB |
| Resolution | >40 dB |
| Dynamic Range | >32 dB |
| CUI Linear | <3% |
| Pusle | Variable pulse generator |
| Work Mode | Single or Dual Penetrate |
| Damping | 50 Ω or 100 Ω or 400 Ω automatically match |
| Detection Method | Half-wave or Radiofrequency |
