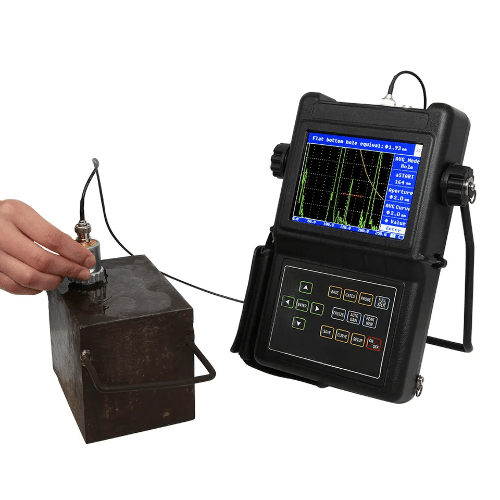

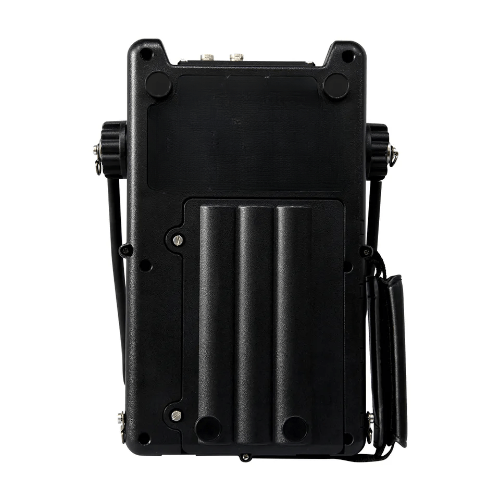

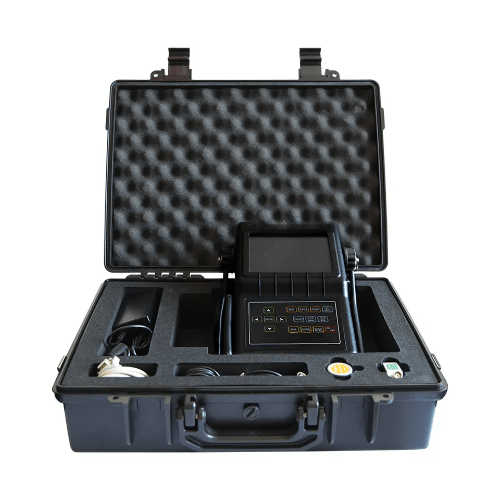

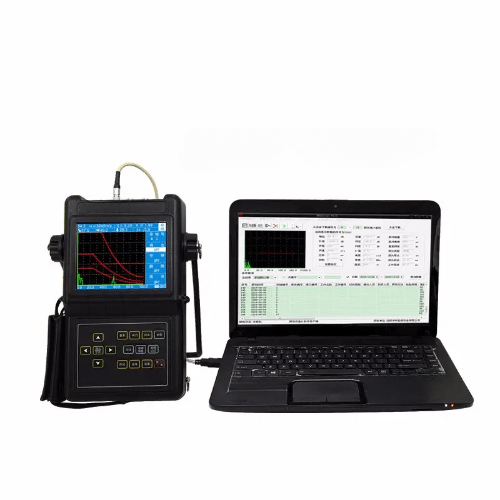

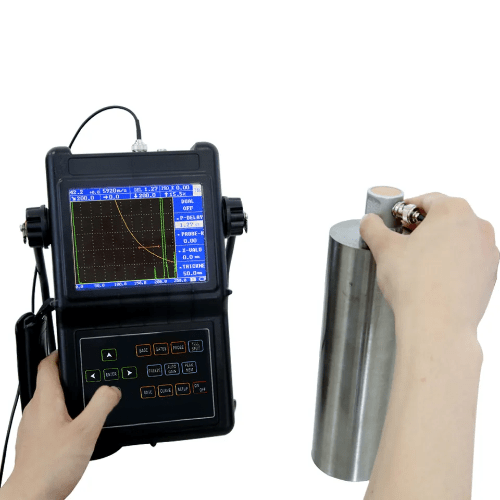

Acoustic Testing Pro Digital Ultrasonic Crack Detector
Acoustic Testing Pro digital ultrasonic crack detectors can quickly, accurately and without damage detect various kinds of defects in the metal such as Cracks, Welded Joint, Internal Porosity, Sand Holes, Inclusions, and Folding detection and location.
Technical Specifications
| Working Frequency | 0.5 MHz to 15 MHz |
| Material Sound Velocity | 1000 m/s to 9999 m/s |
| Operation Mode | Pulse echo, double crystal |
| Probe Zero | 0 us to 199.99 us |
| Gain Control | (0 dB to 110 dB), (0.1 dB, 1 dB to 2 dB, 6 dB) stepping |
| Vertical Linearity Error | ≤3% |
| Horizontal Linearity Error | ≤0.3% |
| Sensitivity Excess | ≥60 dB (deep Φ2 Flat to bottom hole) |
| Definition | ≥32 dB |
| Dynamic Range | ≥ 0 dB |
| Average Noise Level | ≤10% |
| Battery Working Time | 9 hrs |
| Power Supply | 12 V DC, 220 V AC |
| Pulse Shift | O in to 39.37 in (0 mm to 1000 mm) |
| Dimensions | 10.63 in x 7.48 in x 2.36 in (270 mm x 190 mm x 60 mm) |
| Weight | 4.41 Ib (2 kg) (including batteries) |
