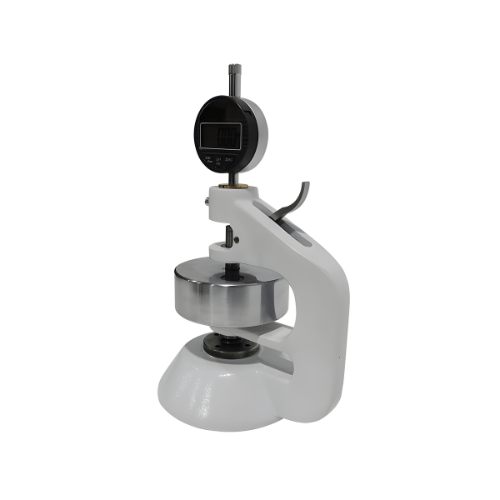

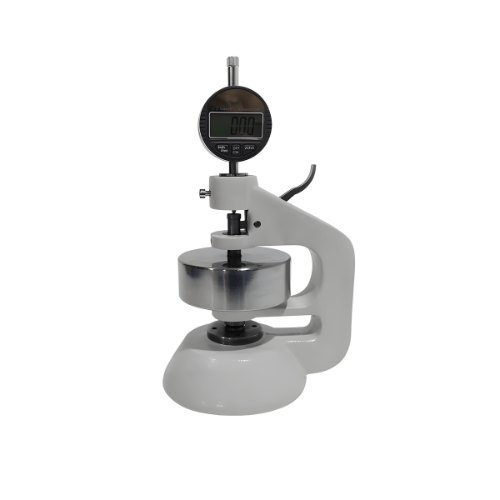

Acoustic Testing Pro Digital Thickness Gauge Measure
This digital thickness gauge measure has measuring area of 0.31in², value error of ± 2.5 um or ± 0.5%, and pressure of 14. 50 psi.
Technical Specifications
| Measure Range | 0 in to 0.31 in (0 mm to 8 mm) |
| Indicators Display Range | 0 in to 0.98 in (0 mm to 25 mm) |
| Accuracy | 0.000039 in or 0.00039 in (0.001 mm or 0.01 mm) (paper board) |
| Measuring Area | 0.31in² (200 mm²) |
| Pressure | 14. 50 psi (100 Kpa) |
| Value Error | ±2.5 um or ±0.5% |
| Dimension | 3.15 in × 4.72 in × 4.72 in (80 mm × 120 mm × 120 mm) |
| Weight | 11.02 lb (5 kg) |
