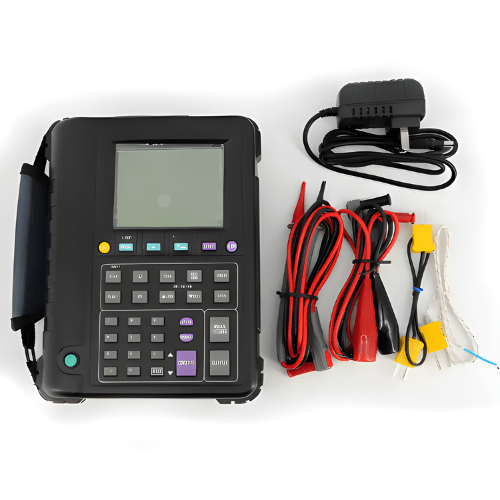

Acoustic Testing Pro Digital Temperature Calibrator
This Digital Temperature Calibrator has DC voltage of 0 V to 30 V, DC current of 0 mA to 90 mA, resistance of 0 Ω to 400 Ω, and accuracy of 0.02% + 3.
Features
- Small, streamlined shape makes it easy to carry
- Rugged, reliable design stands up to field use
- Easy to read measure or source screen lets you view input and output simultaneously
- Support flow meter testing with frequency and CPM functions
- Perform fast linearity tests with auto- step and auto-ramp features
- Store frequently used test setups for later use
- Backlight lets you work in poor light
- Large battery capacity of four AA cells
- Battery door for easy changes
Technical Specifications
| DC Voltage | Measure Signal: 0 V to 30V 0 V to 24 V 0 mV to 90 mV -10 mV to 80 mVMeasure Accuracy: 0.02% + 3 counts (The upper display) 0.02% + 3 counts (The lower display) 0.01% + 10 counts 0.01% + 10 counts (use the thermocouple jack) Output: Output Accuracy: |
| DC Current | Measure Signal 0 mA to 24 mA 0 mA to 24 mAMeasure Accuracy 0.02%+ 4 counts (The upper display) 0.02%+ 4 counts (The lower display)Output 0 mA to 24 mA Output Accuracy |
| Resistance | Measure Accuracy 0.1 Ω (4 wire), 0.15 Ω (2 wire and 3 wire) 0.5 Ω (4 wire), 1 Ω (2 wire and 3 wire)Output 5 Ω to 400 Ω 400 Ω to 4000 ΩOutput Accuracy 0.15 Ω (Excitation current 0.15 to 0.5 mA), 0.1 Ω (Excitation current 0.5 to 2 mA) 0.5 Ω (Excitation current 0.05 to 0.8 mA) |
