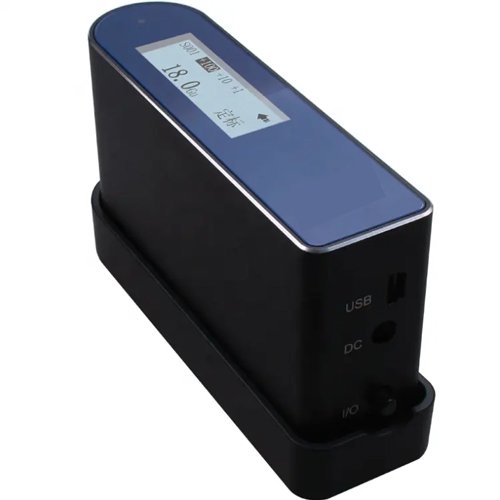

Acoustic Testing Pro Digital Small Calibre Gloss Meter
GAOTEK Gloss meter can be applicable in coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials, stoving varnish, vitrified polished tile.
Overview :
GAOTEK Gloss meter can be applicable in coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials, stoving varnish, vitrified polished tile. While if your sample is cambered or small parts, please don’t worry, with small aperture (1 mm x 3mm) can easily solve your problem.
Features :
- Apply on paint, ink, stoving varnish, coating, wood products
- Automatic/ manual /single
- average and combinationangle
- set standard sample in any stored data, user-define the tolerance range
- Power adapter/User manual
- Warranty card standard board
- Are normally used on flat or wide arc surface samples
Technical Specifications :
| Model | ACTPGLS-107 |
| Measurement Range | 0-2000 Gu |
| Application | Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material. |
| Projection Angle | 20° 60° 85° |
| Measuring Spot | 0.55118 in x 2.40157 in (14 mm * 61mm) |
| Measuring Mode | Automatic/ manual /single /
Average and combination angle |
| Standard Sample Setting | Manually setting/bring out stored data for setting/manually setting tolerance |
| Data Storage | 500 groups |
| Language | Chinese/English |
| Output | Software to PC |
| Division Value | 0-1000: 0.1 Gu/1000-2000:1 Gu |
| Repeatability | 0-100:0.2>100:0.2% |
| Reproducibility | 0.2 Gu |
| Indication Error | 1.5 Gu |
| International Standard 60° | ISO-2813/ASTM-C584/ASTM-D523/DIN-67530/ASTM-D2457/JND-A60/JND-P60/ISO7668 |
| Working Temperature | 10 ℃ to 40 ℃ (50 ℉ to 104 ℉) |
| Storage Temperature | -10 ℃ to 70 ℃ (14 ℉ to 158 ℉) |
| Humidity Range | Relative humidity less than 85%, without condensation |
| Volume | 4.80315 in * 1.33858 in * 2.36220 in (122 mm * 34 mm * 60mm) |
| Weight | 0.6826722 lb (0.31 kg) |

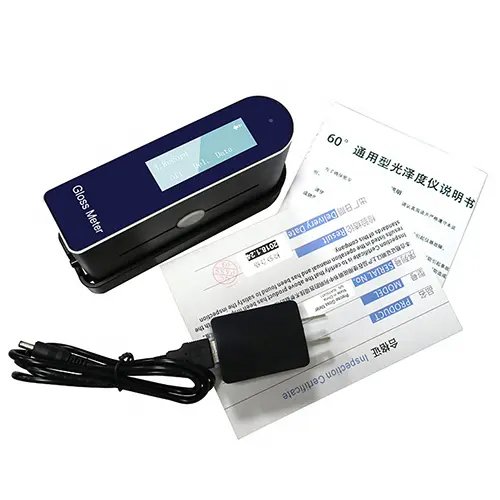

| Standard Accessories | Power adapter/User manual /Warranty card / Standard board / Add usb cable GlossW software
|
