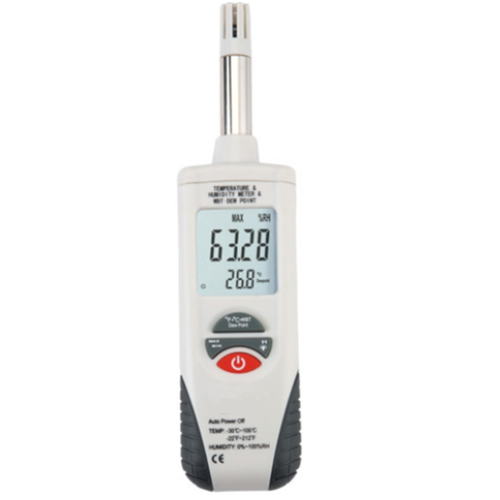

Acoustic Testing Pro Digital Portable Precision Dew-Point Hygrometer – Digital Display

The Digital Portable Precision Dew-Point Hygrometer accurately measures dew point in various environments. Ideal for industrial applications, it ensures precise humidity monitoring with easy portability and real-time data display.

SKU: ACTPHTI-109 Category:

Overview

Acoustic Testing Pro Digital Portable Precision Dew-point Hygrometer is a highly reliable and efficient device designed for accurate measurement of dew point temperature. With its advanced technology and precision sensors, this portable meter provides real-time and precise dew point readings. The digital display ensures clear and easy-to-read data, making it user-friendly and convenient for various applications. Its compact and portable design allows for easy handling and usage in various environments. This dew point meter is ideal for industries such as HVAC, manufacturing, and environmental monitoring, where monitoring humidity levels is crucial. Overall, the product is a valuable tool for ensuring optimal humidity control and improving overall efficiency and productivity.



Features

  • Used the exclusive MICRO-COMPUTER LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
  • Digital display gives exact reading with no guessing.
  • Wide measuring range & high resolution.
  • The Last Values / Max. Values / Min. Values of both Humidity and Temperature will be automatically stored in memory and can be displayed one at a time.
  • The use of durable, long-lasting components, including a strong, lightweight ABS-plastic housing, assures maintenance-free performance for many years. The housing has been carefully shaped to fit in either hand.



Technical Specification

Range Humidity: 10 % to 95 % RH

Temperature: 14 °F to 140 °F (- 10 °C to 60 °C)

Wet Bulb Temp: 14 °F to 140 °F (- 10 °C to 60 °C)

Dew Point Temp: – 40 °F to 104 °F (- 40 °C to 40 °C)

Resolution Humidity: 0.1 % RH

Temp: 0.1 °F / 0.1 °C

Wet Bulb Temp: 0.1 °F / 0.1 °C

Dew Point Temp: 32.18 °F (0.1 °C)

Accuracy Humidity: 2.5 % RH ± 1 % RH

Temp: ± 32.9 °F (0.5 °C)

Wet Bulb Temp: ± 32.9 °F (0.5 °C)

Dew Point Temp: ± 33.8 °F (1 °C)

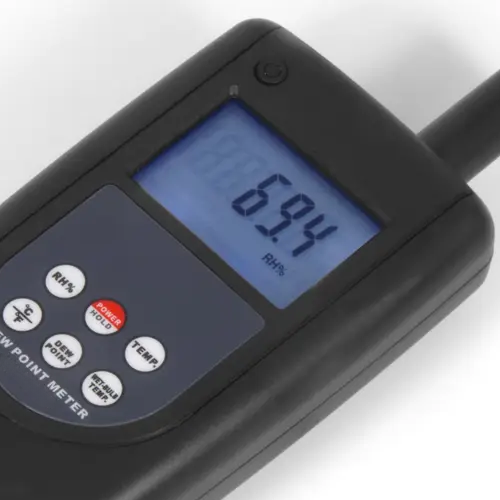

Display Backlit LCD
Sensor Type Humidity: Capacitor Temperature: Resistor
Sampling Time 0.4 Seconds
Memory Last Value, Max Value, Min Value
Time Base Quartz Crystal

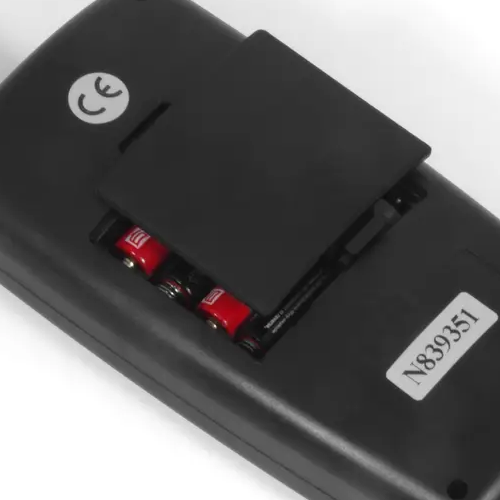

Power Supply 4 V x 1.5 V AAA (UM-4) Battery
Dimensions 6.73 in x 2.83 in x 1.33 in (17.1 cm x 7.2 cm x 3.4 cm)
Weight 5.11 oz (145 g) (Not Including Batteries)
