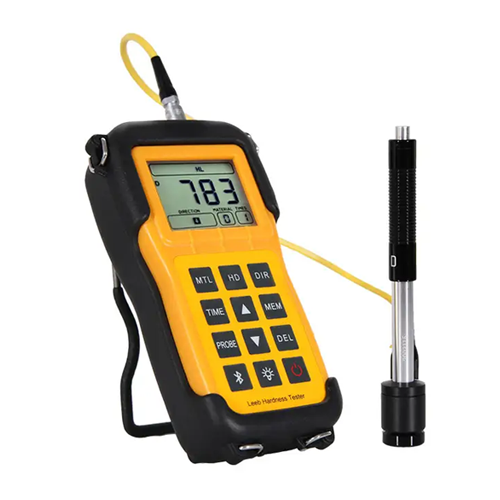

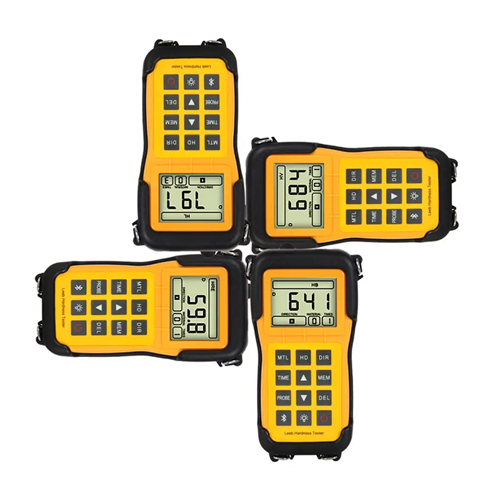

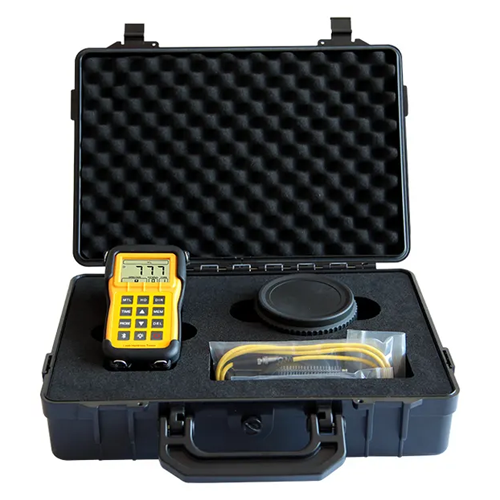

Acoustic Testing Pro Digital Metal Leeb Hardness Tester
This Digital Metal Leeb Hardness Tester has temperature range of 14 °F to 122 °F (-10 ℃ to 50 ℃) ,USB port, dual AA batteries with IP50 protection.
Features
- Easy to plug and unplug
- The socket meets IP 50 protection level
- Anti-rust, anti-corrosion
- shock and vibration resistance
Technical Specifications
| Measuring Method | Leeb Hardness Method |
| Hardness Scale | HL, HB, HRB, HRC, HV, HS. σb. |
| Impact Device | D type impact device standard, optional C / G / DC / DL / D + 15 |
| Accuracy | <±6 HLD (HLD = 800), Repeatability <6 HLD (HLD = 800) |
| Measuring Direction | Vertically Downwards, Downward sloping, Horizontal, upwardly sloping, vertically Upwards. |
| Material | Steel & Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Macht metal, Copper-tin alloy, Brass |
| Resolution | 1 HL, 1 HV, 1 HB, 0.1 HRB, 0.1 HRC, 0.1 HS |
| Display | High Contrast Segment Liquid Crystal Display (LED Backlight) |
| Data Memory | 100 groups (each group include 1 to 7 hardness values and 1 mean value) |
| Communication | USB port (standard) and Blue Tooth (optional) |
| Printer | Thermal Printer with Blue Tooth (optional) |
| Power | 2 AA batteries |
| Standard | GB / T 17394-1998, ASTM A956 |
| Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Size (H×W×D) | 60.2 in x 2.99 in x 1.45 in (153 mm x 76 mm x 37 mm) |
| Weight | 0.61 lb (280 g) include batteries |
