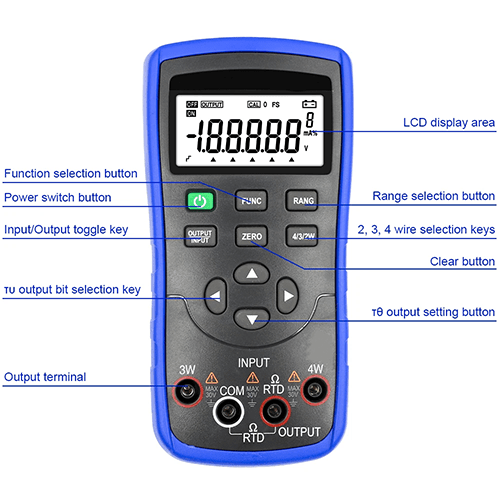

Acoustic Testing Pro Digital Handheld Process Calibrator
Acoustic Testing Pro digital handheld process calibrator can provide DC 24 V loop voltage, measure current at the same time, and perform switch on and off measurement.
Overview
Acoustic Testing Pro digital handheld process calibrator can provide DC 24 V loop voltage, measure current at the same time, and perform switch on and off measurement. It can perform quick operation from stepping and zero to full gear. It is suitable for on-site process loop verification, maintenance, and fault diagnosis.
Features
- Can simulate transformer
- On-off measurement
- Stepping operation
- Percentage display
- Low battery Indicator
Technical Specifications
| Digits Display | 5 digits |
| DC voltage output (DCV) | 24 V ± (10%) |
| DC current output (DCA) | 0.1 mA to 22 mA ± (0.05% + 4 μA) |
| DC voltage measurement | ±0.1 V to 28 V ± (0.02%+2 mV) |
| DC current measurement | ±0.001 mA to 20 mA ± (0.02% + 4 μA) |
| Elevation Limitation | Lower than 3280.84 ft (1 km) |
| Safety Regulations | IEC1010 |
| Power Supply | 9 V Battery (ANSI, NEDA 1604A or IEC 6LR619V Alkaline) |
| Working Environment | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Environment | 10 °F to 41 °F (-10 °C to 5 °C) |
| Dimension | 7.87 in × 3.93 in × 1.57 in (200 mm × 100 mm × 40 mm) |
| Weight | 1.21 lb (550 g) |
