Acoustic Testing Pro Digital Crack Detector

Overview

Acoustic Testing Pro Digital Crack Detector can be widely used in bridges, tunnels, buildings, concrete pavement, and metal surface crack width. Equipment mainly consists of a handheld color LCD screen host, color microscopic amplification probe (with 1 m connection cable) constitutes a measurement program automatically scans the capture cracks and crack width values in real-time display on the screen, can also be the need to crack take pictures (cracks in the photo while preserving fracture images, the width of the data, scales, to enlarge the image information) of the factor and the crack number, crack photo as a standard BMP format and stored directly to any U disk to facilitate further image analysis of the user or print archive.

Features

• An automatic interpretation of the crack width, directly to the crack width values are displayed on the screen

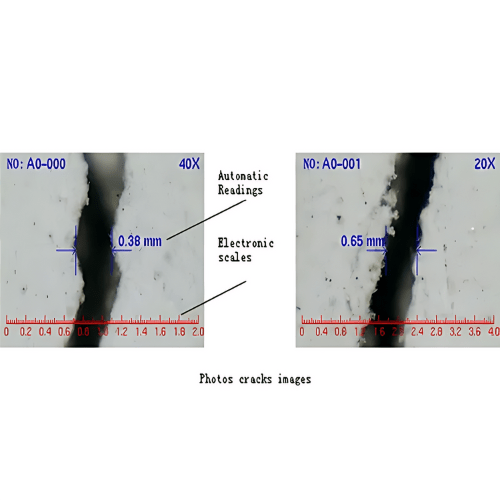

• Automatic shooting crack photos, real-time image display
• Stored photos, data can be playback viewing
• probe (camera) comes with lighting fixtures, work around the clock, from the light changes
• Simple alignment of cracks can be automatically reading, without any set up, fool operation
• Crack photo as a standard BMP format, direct shoot storage to any U disk / SD card
• The only in the cracks in the photo while preserving fracture images, the width of the data, scales, zoom factor and the crack number
• Host and the probe share a lithium battery-powered

Technical Specifications
