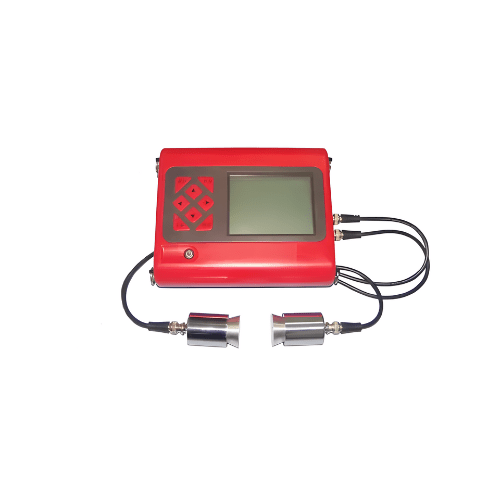

Acoustic Testing Pro Digital Concrete Crake Depth Detector
Acoustic Testing Pro Digital Concrete Crake Depth Detector is mainly used to test crack depth and sound wave propagation velocity in concrete according to sound wave diffraction propagation principle.
Overview
Acoustic Testing Pro Digital Concrete Crake Depth Detector is mainly used to test crack depth and sound wave propagation velocity in concrete according to sound wave diffraction propagation principle. It is an intelligent instrument with combined functions such as testing, saving and transiting data.
Features
- High Intelligence Interpret sound wave propagation velocity and crevice depth value without human labor
- Deep testable crevice depth. Testable crevice depth is up to 650 mm
- Special scales. Improve test efficiency with portable, practical special scales
- Being able to save data. It’s convenient for laborer data management
- Powerful data processing and analysis software in Windows OS
Technical Specifications
| Depth Scope | 25.59 in (≤ 650 mm) |
| Permissible Error | ≤ 10 % |
| Data Storage Capacity | more than 6000 group test data |
| Batteries | 6 dry cells, work more than 10 times |
| Resolution of LCD Screen | 160 X 128 |
| Instrument Size | 7.48 in x 7.20 in x 3.30 in (190 mm × 183 mm × 84 mm) |
