Acoustic Testing Pro Digital Coating Thickness Gauge
This Digital Coating Thickness Gauge has 0.02 in to 20 in measuring range, 2.4 in color OLED, 2 AA batteries and coating thickness of up to 0.31 in.
Features
- Color 320 x 240 Pixels Display
- Live Simultaneous Color A – Scan and Thickness Display
- Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes
- Time – based B-Scan Display
- Echo – Echo Mode (Thru Paint & Coatings)
- Stores 100,000 Readings and 1000 waveform
Technical Specifications
| Display Type | 2.4 in color OLED, 320 x 240 pixels, contrast 10,000: 1 |

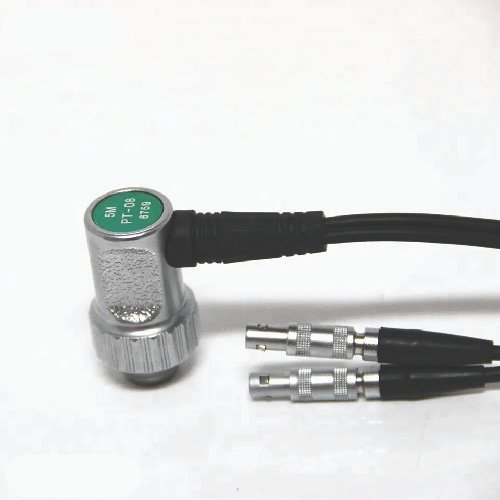

| Operating Principle | Pulse echo with dual element transducers |
| Measuring Resolution | Selectable 0.003 in (0.01 mm), 0.03 in (0.1 mm) |
| Rectify Modes | RF +, RF -, HALF +, HALF -, FULL |
| Display Mode | Normal, Minimum / Maximum capture, DIFF/RR %, A- Scan, B- Scan |
| V-Path Correction | Automatic |
| Update Rate | Selectable 4 Hz, 8 Hz, 16 Hz |
| Material Velocity Range | 500 m/s to 9999 m/s (0.0197 in/us to 0.3937 in/us) |
| Languages | English |
| Alarm Setting | Minimum and Maximum alarms, Range of 0.10 in to 20 in (0.25 mm to 508 mm) Dynamic waveform color change on alarm |
| Power Requirements | 2 AA size batteries |
| Operating Time | Approximately 40 hours |
| Instrument Shut-off | selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity |
| Measuring Range | 0.02 in to 20 in (0.50 mm to 508 mm), depending on material, probe and surface condition |
| Through Coating Function | Coating thickness: 0 in to 0.31 in (0 mm to 8 mm),Measuring range: 0.11 in to 1.9 in (3 mm to 50 mm) |
| Operating Temperature | 10 °F to 120 °F ( -10 °C to +50 °C) |
| Size (H x W x D) | 6.02 in x 2.99 in x 1.45 in (153 mm x 76 mm x 37 mm) |
| Weight | 0.61 lb (280 g) including batteries |
