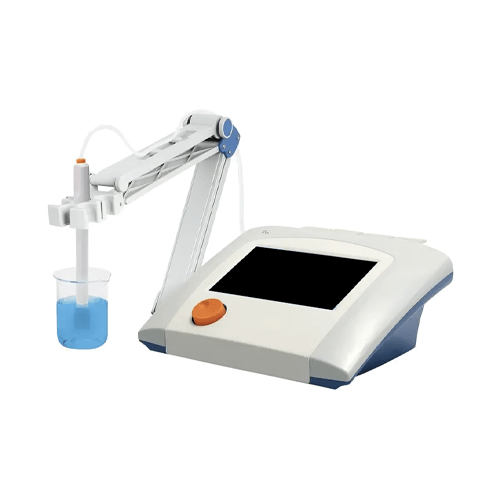

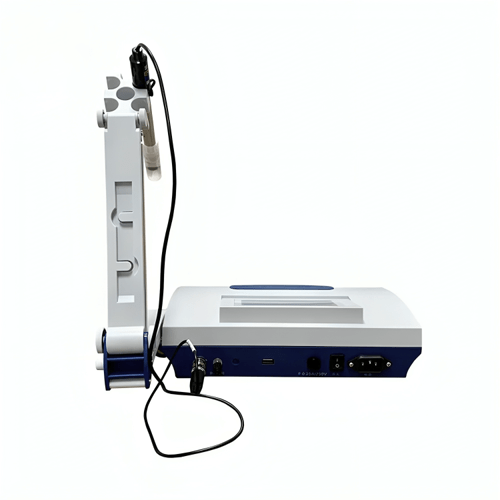

Acoustic Testing Pro Desktop Ion Meter
This Desktop Ion Meter has a pH range of -2 pH to 20 pH, pX range of -2 pX to 20 pX, calibration points of up to 6, data storage of and 1000 Groups.
Features
- 0-inch high-contrast LCD touchscreen
- Intelligent system for user, calibration, and data management
- Multi-reading for auto, timed, continuous reads
- Auto/manual temp compensation for accuracy
- 1000 Sets data storage per parameter (GLP)
- Data analysis for review and comparison
- USB/RS-232 communication support
- Reset to factory settings feature
- IP54 Waterproof rating
Technical Specifications
| PH Range | -2 PH to 20 PH |
| PH Resolution | 0.1, 0.01, 0.001 PH |
| PH Accuracy | ± 0.002 PH |
| PH Calibration Points | Up To 6 |
| PH Standard Customization | Yes |
| PH Calibration Reminder | Yes |
| PH Standard Recognition | NIST, GB, DIN Buffers |
| PH Slope Limit | Yes |
| MV/ORP Range | -2000 MV to 2000 MV |
| MV/ORP Resolution | 0.1, 0.01 MV |
| MV/ORP Accuracy | ±0.1 MV or ±0.03% |
| MV/ORP EH ORP Mode | Yes |
| MV/ORP ORP Calibration Points | 1 Custom Point to 2 Custom Point (Relative MV) |
| PX Range | -2 PX to 20 PX |
| PX Resolution | 0.1, 0.01, 0.001 PX |
| PX Accuracy | ± 0.002 PX |
| ISE Range | 1.000 e-9 To 9.999 e+9 |
| ISE Units | Mol/L, Mmol/L, g/L, Mg/L, μg/L |
| ISE Resolution | Up to 4 Significant Digits |
| ISE Accuracy | ±0.3% |
| ISE Calibration Points | Up to 6 |
| Temperature Range | 23 ℉ To 266 ℉ (-5 ℃ to 130 ℃) |
| Temperature Resolution | 0.1 |
| Temperature Accuracy | ±0.1 |
| Measurement Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Measurement Reading Prompts | Reading, Stable, Locked |
| Measurement Temp. Compensation | ATC, MTC |
| Data Storage | 1000 Groups |
| Inputs PH Electrode | BNC (Q9) |
| USB, RS 232 | USB 2.0 Flash Memory Device, Printer, PC |
| Display Options Backlight | Yes |
| Display Options Auto Shutdown | 1 Min to 60 Min Of |
| Display Options IP Rating | IP 54 |
| Display Options Date and Time | Yes |
| Power | AC Adapter, 100 V to 240 V AC Input, DC 24 V Output |
| Dimensions | 11.02 In × 11.02 in × 5.11 in (280 mm × 280 mm × 130 mm) |
| Weight | 5.51 Lb (2.5 kg) |
