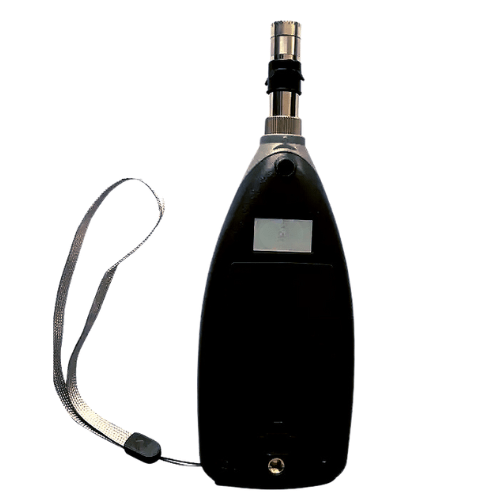

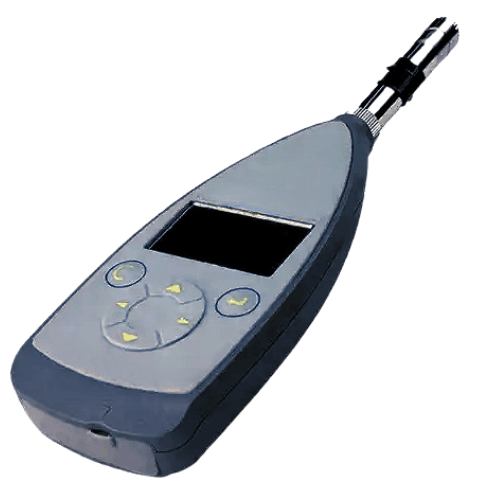

Acoustic Testing Pro Decibel Meter
This decibel meter has a frequency 20 Hz to 12.5 kHz, battery 4 × LR 6 power supply attery 4 × LR 6 ,and measurement range 30 to 130 dBA.
Technical Specification
| Standards | IEC 61672 Class 2 |
| Contents | Meter, microphone, windscreen, calibration certificate, carrying case, English manual |
| Application | Noise measurement |
| Frequency | 20 Hz to 12.5 kHz |
| Power Supply | battery 4 × LR 6 |
| Measurement Range | 30 dBA to 130 dBA |
| Display | 128 × 64 OLED |
| A or D Bits | 32 kHz |
| Notes | ±1 dB accuracy with 0.1 dB resolution A, C, Z weighting;F, S weighting Lp, Lmax ½ prepolarized condenser microphone |
| Grade | Industrial |
| Customized support | OEM, ODM |
| Frequency Range | 20 Hz to 12.5 kHz |
| Resolution | 0.1 dB |
| Measurement Range | 30 dBA to130 dBA |
| Frequency Weighting | A, C, Z |
| Time Weighting | F, S, I |
| Dimension | 12.20 in × 2.83 in × 1.36 in (310 mm x 72 mm x 32 mm) |
| Working Temperature | 14 °F to 122 °F ( -10 °C to 50 °C) |
| Product Weight | 6.61 lb (0.3 kg) |
